The recombination breakpoint in XBB’s spike gene

SARS-CoV-2 XBB descends from two BA.2 lineages at once. BJ.1 gave it the 5’ end of its genome and BM.1.1.1 the 3’ end, and the join between the two falls inside the spike gene, so the XBB.1 row of an alignment matches one parent to the left of the join and the other to the right. For five whole genomes from GenBank, with a BA.5 genome as a control that inherits from neither parent, we:

• fetch the genomes, align them and infer a tree
• project the reference genes onto every row
• count the differences to each parent in a sliding window
• pin the breakpoint with the informative sites, for XBB.1 and the control
• check the result against the raw columns

Prerequisites

• curl
• ClustalW, apt install clustalw on Debian or Ubuntu, brew install clustal-w on macOS. ClustalW both aligns and infers a tree, so this page needs no other aligner.
• Python 3, standard library only

The data

Five SARS-CoV-2 genomes as GenBank holds them, and NCBI’s own annotation of the reference. Nothing to download: the commands below and the build script fetch these.

1. Fetch the five genomes

Write one genome per line, with the label the viewer draws, the GenBank accession, and the Pango lineage NCBI Virus assigns it. The label becomes the FASTA defline, the tree tip and the GFF seq_id.

Wuhan-Hu-1	NC_045512.2	reference
BJ.1	OQ859938.1	BA.2.10.1.1
BM.1.1.1	OP911098.1	BA.2.75.3.1.1.1
XBB.1	PV014247.1	XBB.1
BA.5	PQ577962.1	BA.5

The datasets CLI filters on NCBI Virus’s Pango lineage field:

datasets summary virus genome taxon sars-cov-2 --lineage BJ.1 \
  --complete-only --annotated --as-json-lines

GenBank holds one complete BJ.1 genome, OQ859938.1, so that record is the BJ.1 row. The other three rows are each the longest record their lineage filter returned with no ambiguous base. One efetch request takes all five accessions:

ids=$(awk -F'\t' '{printf "%s%s", sep, $2; sep=","}' recombinant-rows.tsv)
curl -sf "https://eutils.ncbi.nlm.nih.gov/entrez/eutils/efetch.fcgi?db=nuccore&id=$ids&rettype=fasta&retmode=text" \
  -o genomes-ncbi.fasta

  Wuhan-Hu-1   NC_045512.2  reference        29903 bp  0 N
  BJ.1         OQ859938.1   BA.2.10.1.1      29784 bp  101 N
  BM.1.1.1     OP911098.1   BA.2.75.3.1.1.1  29847 bp  0 N
  XBB.1        PV014247.1   XBB.1            29712 bp  0 N
  BA.5         PQ577962.1   BA.5             29835 bp  0 N

The BJ.1 record has 101 ambiguous bases, 57 of them inside the first 500 bases of the spike gene, so the scan below counts only the columns where both rows have a base.

2. Align the genomes and infer a tree

clustalw -INFILE=recombinant.fasta -ALIGN -TYPE=DNA -OUTORDER=INPUT \
  -OUTPUT=FASTA -OUTFILE=recombinant.afa
clustalw -INFILE=recombinant.afa -TREE -TYPE=DNA -OUTPUTTREE=phylip
tr -d '[:space:]' < recombinant.ph > recombinant.nwk

Five whole genomes take about four minutes on a laptop.

(((Wuhan-Hu-1:0.00174,BA.5:0.00031):0.00064,BM.1.1.1:0.00062):0.00031,
BJ.1:0.00048,XBB.1:0.00033);

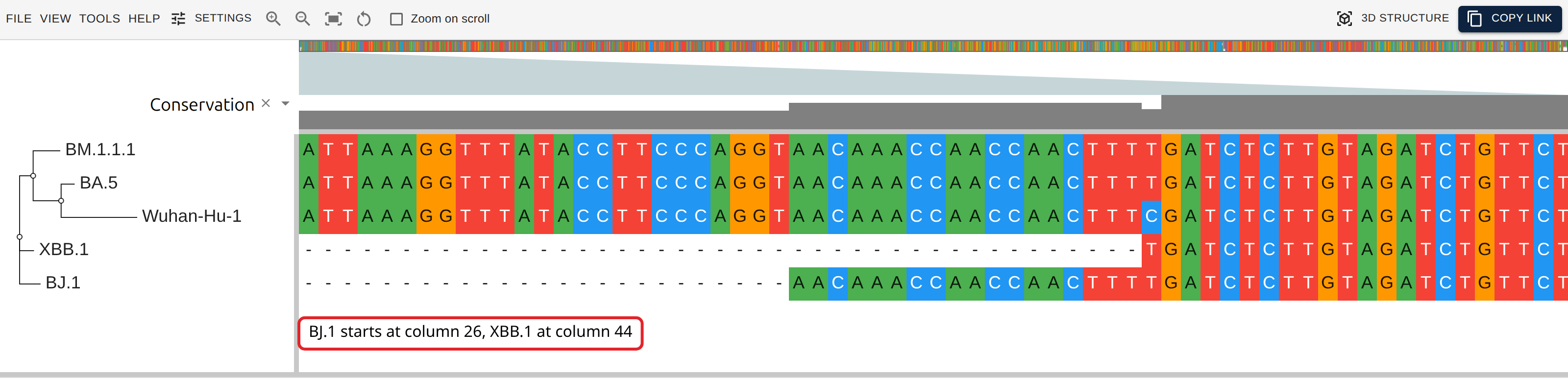

5 rows, 29903 alignment columns, 29903 of them a base of Wuhan-Hu-1
  Wuhan-Hu-1     0 gap columns before its first base,   0 after its last,   0 deleted in between
  BJ.1          25 gap columns before its first base,  94 after its last,   0 deleted in between
  BM.1.1.1       0 gap columns before its first base,   0 after its last,  56 deleted in between
  XBB.1         43 gap columns before its first base,  89 after its last,  59 deleted in between
  BA.5           0 gap columns before its first base,   0 after its last,  68 deleted in between

The reference row takes a column of its own for every one of its bases, so a column number is a Wuhan-Hu-1 coordinate for the rest of this page.

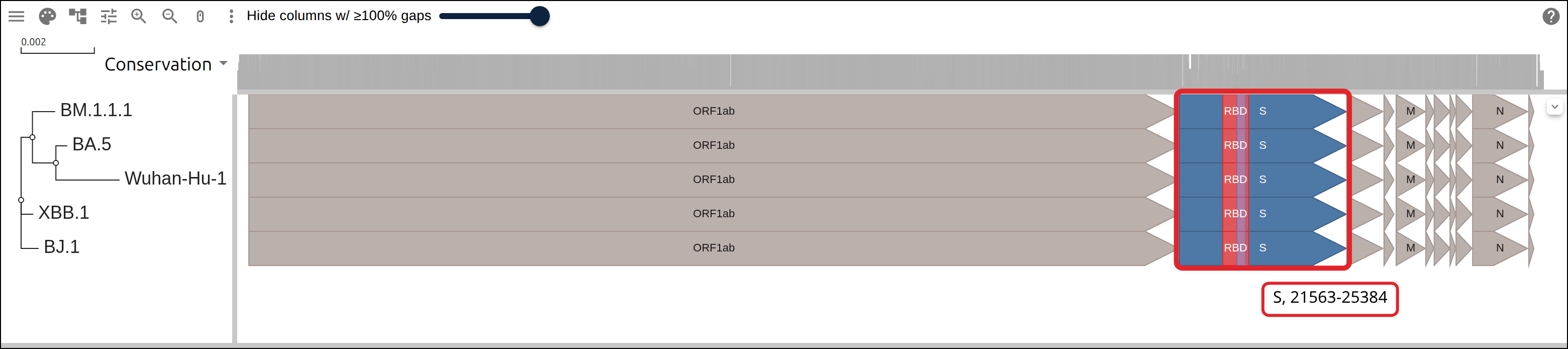

3. Project the reference genes onto every row

RefSeq annotates NC_045512.2 and none of the other four accessions, so the gene coordinates reach the other rows through the alignment. A reference position gives an alignment column, and that column gives each row its own position.

col_of_ref = [i for i, c in enumerate(seqs[REF]) if c != '-']
a = pos_of_col[row][col_of_ref[start - 1]]
b = pos_of_col[row][col_of_ref[end - 1]]
g.write(f'{row}\tRefSeq\t{kind}\t{a}\t{b}\t.\t{strand}\t.\tName={name};color={color}\n')

Two subregions of spike go on every row the same way, the receptor-binding domain at residues 331 to 528 and the receptor-binding motif inside it at 438 to 506.

11 genes in the Wuhan-Hu-1 annotation, ORF1ab at 266-21555 through ORF10 at 29558-29674
13 spans per row over 5 rows

Wuhan-Hu-1	RefSeq	gene	21563	25384	.	+	.	Name=S;color=%234e79a7
BJ.1	RefSeq	gene	21538	25359	.	+	.	Name=S;color=%234e79a7
XBB.1	RefSeq	gene	21508	25317	.	+	.	Name=S;color=%234e79a7

Each row’s spike span starts earlier than the reference’s by the gap columns upstream of it, 25 for BJ.1 and 55 for XBB.1.

4. Count the differences to each parent

The scan counts the columns where a row and a parent have different bases, in a window of 200 columns centered on every column of the alignment, once per parent:

def compare(a, b):
    x, y = seqs[a], seqs[b]
    return [None if x[i] not in BASES or y[i] not in BASES else int(x[i] != y[i])
            for i in range(ncol)]


def scan(diff):
    half = WINDOW // 2
    running = [0]
    for d in diff:
        running.append(running[-1] + (d or 0))
    return [running[min(ncol, i + half)] - running[max(0, i - half)]
            for i in range(ncol)]

All four Omicron rows descend from BA.2, so every pair is above 99.8% identical:

XBB.1     against BJ.1       24 differences over 29660 comparable columns, 99.92% identity
XBB.1     against BM.1.1.1   35 differences over 29709 comparable columns, 99.88% identity
BA.5      against BJ.1       50 differences over 29669 comparable columns, 99.83% identity
BA.5      against BM.1.1.1   46 differences over 29832 comparable columns, 99.85% identity

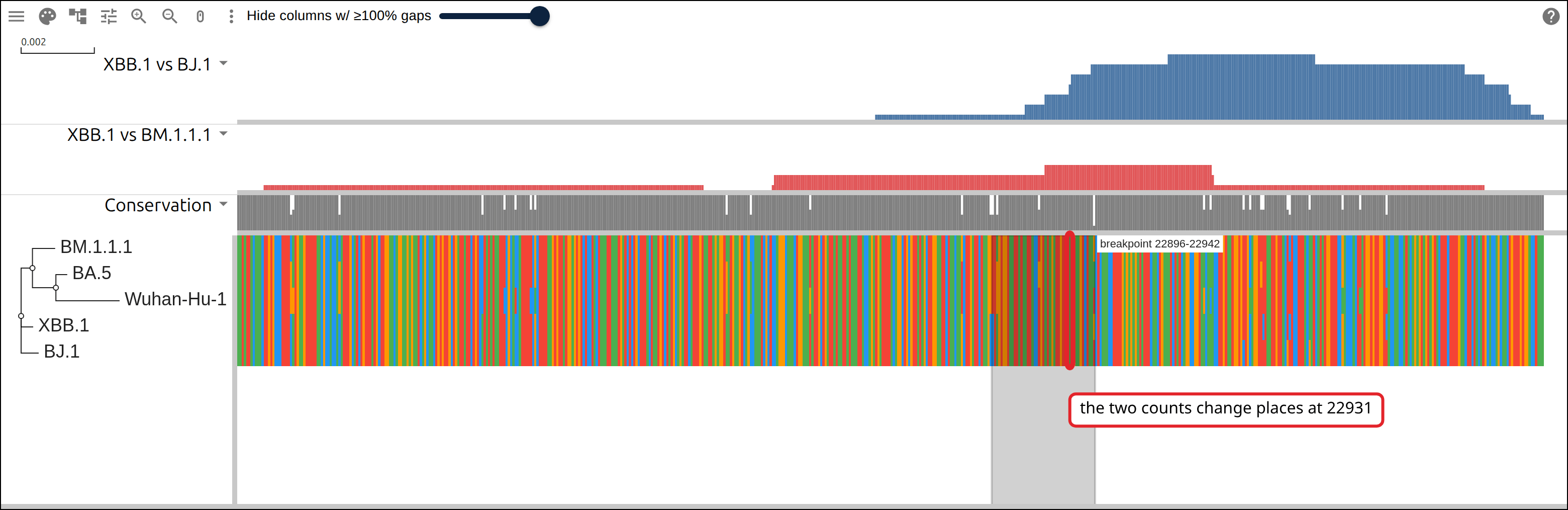

A bar track holds one value per alignment column, so the two curves travel over the receptor-binding domain cut out of the alignment, which keeps the link short and lets one tree file serve both alignments.

the receptor-binding domain is columns 22553-23146, Wuhan-Hu-1 22553-23146, 594 columns
XBB.1: the lower of the two curves changes hands 1 time across the receptor-binding domain, at Wuhan-Hu-1 22931
XBB.1: the two counts reach 7 differences per 200 columns inside the receptor-binding domain
  XBB.1 vs BJ.1: 0 to 1 left of the break, 1 to 7 right of it
  XBB.1 vs BM.1.1.1: 0 to 2 left of the break, 0 to 3 right of it

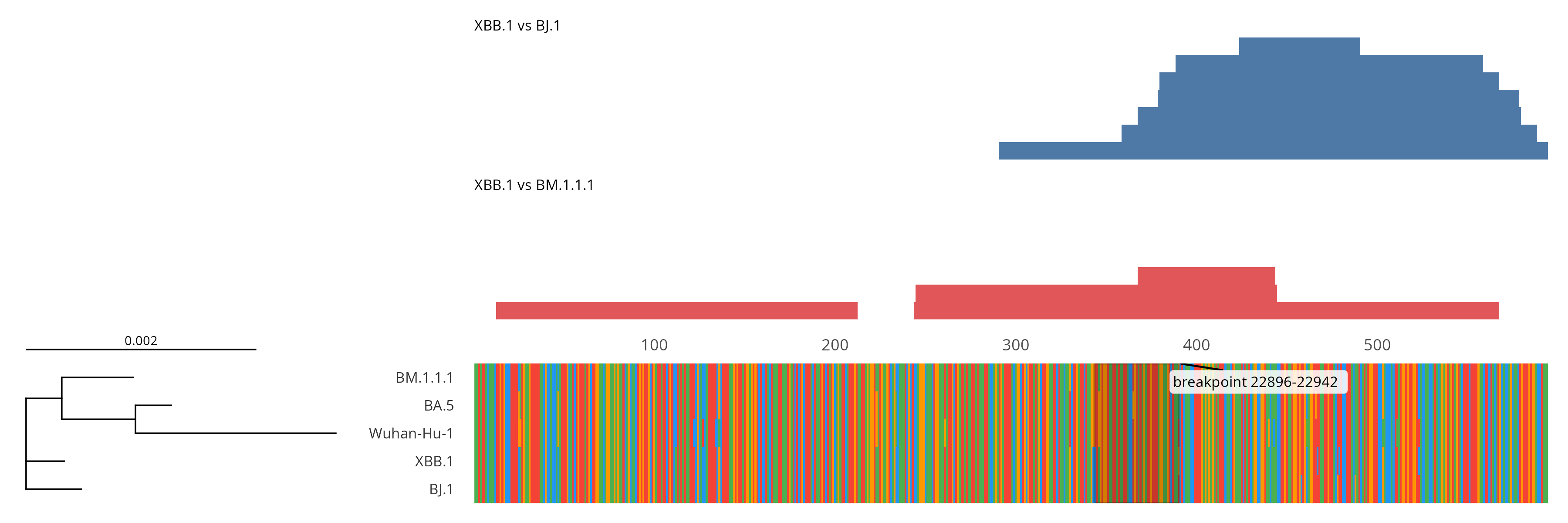

WebR

The two counts and the breakpoint travel in the hosted layers file, which ggmsaview reads with jsonlite and hands to msaview() beside the alignment and the tree:

library(ggmsaview)
data <- "https://gmod.org/JBrowseMSA/demo/data/recombinant"
layers <- jsonlite::fromJSON(file.path(data, "recombinant-layers.json"),
  simplifyVector = FALSE)
w <- msaview(
  msa = file.path(data, "recombinant-rbd.afa"),
  tree = file.path(data, "recombinant.nwk"),
  color_scheme = "nucleotide",
  column_tracks = layers$recombinantTracks
) +
  geom_msa_highlight(
    start = layers$breakpoint$firstWindowColumn,
    end = layers$breakpoint$lastWindowColumn,
    label = "breakpoint 22896-22942", color = "rgba(0,0,0,0.18)"
  )
w
ggplot2::ggsave("recombination_breakpoint-2-r.png",
  msaview_plot(w, tracks = c("XBB.1 vs BJ.1", "XBB.1 vs BM.1.1.1")),
  width = 12, height = 4)

5. Pin the breakpoint with the informative sites

A column where the two parents have different bases and the third row has one of them is a vote for that parent. A recombinant’s votes fall into a 5’ block and a 3’ block, so the split that puts the most votes on their own side is the breakpoint:

def best_split(sites):
    best, at = -1, 0
    for k in range(len(sites) + 1):
        score = (sum(1 for _, w in sites[:k] if w == LEFT)
                 + sum(1 for _, w in sites[k:] if w == RIGHT))
        if score > best:
            best, at = score, k
    return at, best

XBB.1: 44 informative sites, 27 voting BJ.1 and 17 voting BM.1.1.1
XBB.1: the best split has 41 of the 44 sites on the side it predicts, between Wuhan-Hu-1 22896 and 22942
XBB.1: 3 sites on the other side: 1093, 10189, 23438
the breakpoint interval is Wuhan-Hu-1 22896-22942, 47 nt, spike codons 445 to 460

41 of the 44 sites fall on the side the split predicts. The 47 bases between the last BJ.1 vote and the first BM.1.1.1 vote are spike codons 445 to 460, inside the receptor-binding motif, so the interval runs between the substitutions S:V445P and S:N460K.

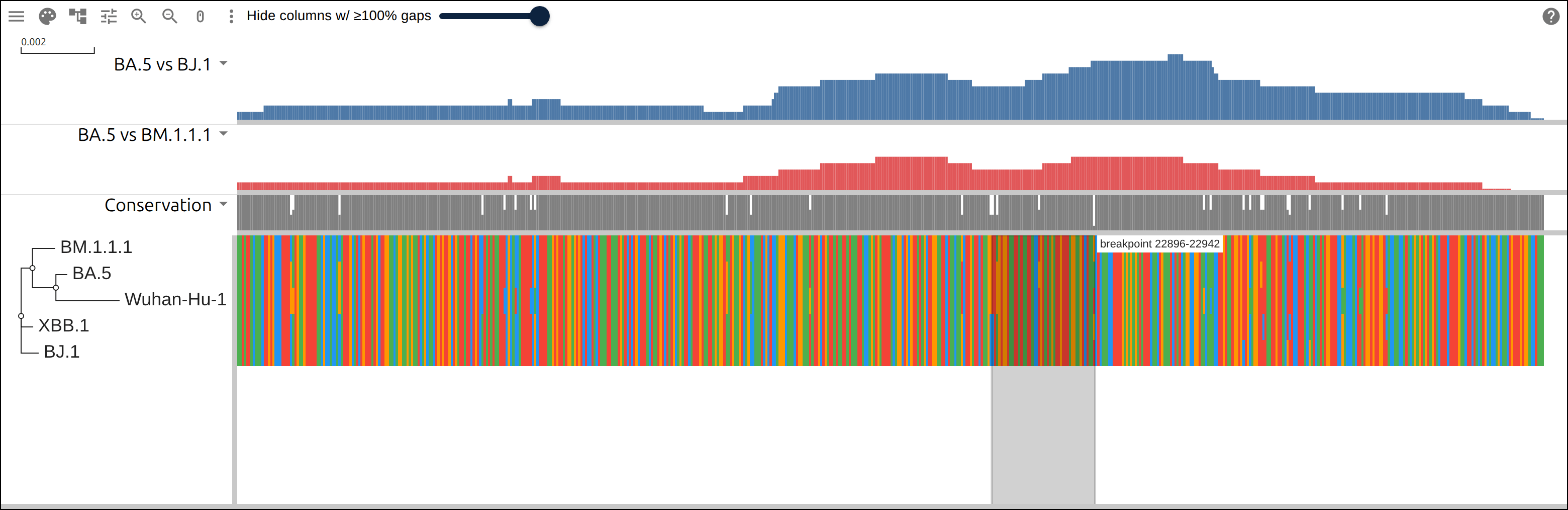

6. Run the same scan on the control

BA.5 and the two parents are three separate BA.2 descendants, so the BA.5 row stands to both parents as a row with no recombination behind it. The same scan and split run over it:

BA.5: 42 informative sites, 19 voting BJ.1 and 23 voting BM.1.1.1
BA.5: the best split has 28 of the 42 sites on the side it predicts, between Wuhan-Hu-1 12444 and 15738
BA.5: 14 sites on the other side: 405, 1093, 10189, 18583, 22001, 22014, 22016, 22033, 22190, 22331, 23031, 23438, 25416, 26275
BA.5: the lower of the two curves changes hands 0 times across the receptor-binding domain
BA.5: the two counts reach 11 differences per 200 columns inside the receptor-binding domain
  BA.5 vs BJ.1: 2 to 8 left of the break, 1 to 11 right of it
  BA.5 vs BM.1.1.1: 2 to 6 left of the break, 0 to 6 right of it

The best split for BA.5 leaves 14 of its 42 sites on the other side and names a 3.3 kb interval inside ORF1ab, 12,444 to 15,738.

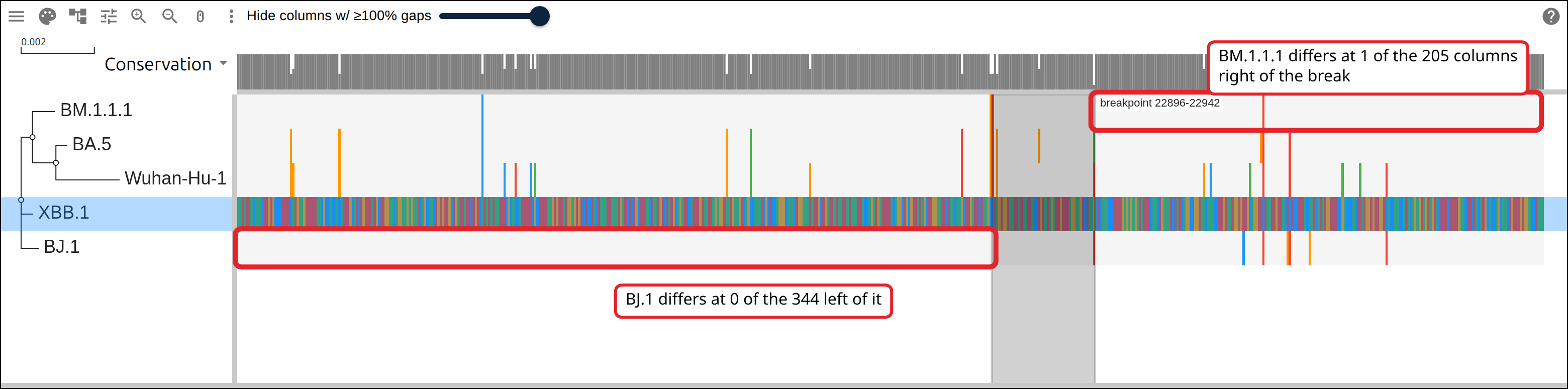

7. Check it against the raw columns

Count the differences to each parent in the 2 kb either side of the break:

2000 columns left of the break: XBB.1 and BJ.1 differ at 1 of the 1942 columns where both carry a base
2000 columns left of the break: XBB.1 and BM.1.1.1 differ at 14 of the 1985 columns where both carry a base
2000 columns right of the break: XBB.1 and BJ.1 differ at 9 of the 2000 columns where both carry a base
2000 columns right of the break: XBB.1 and BM.1.1.1 differ at 2 of the 2000 columns where both carry a base

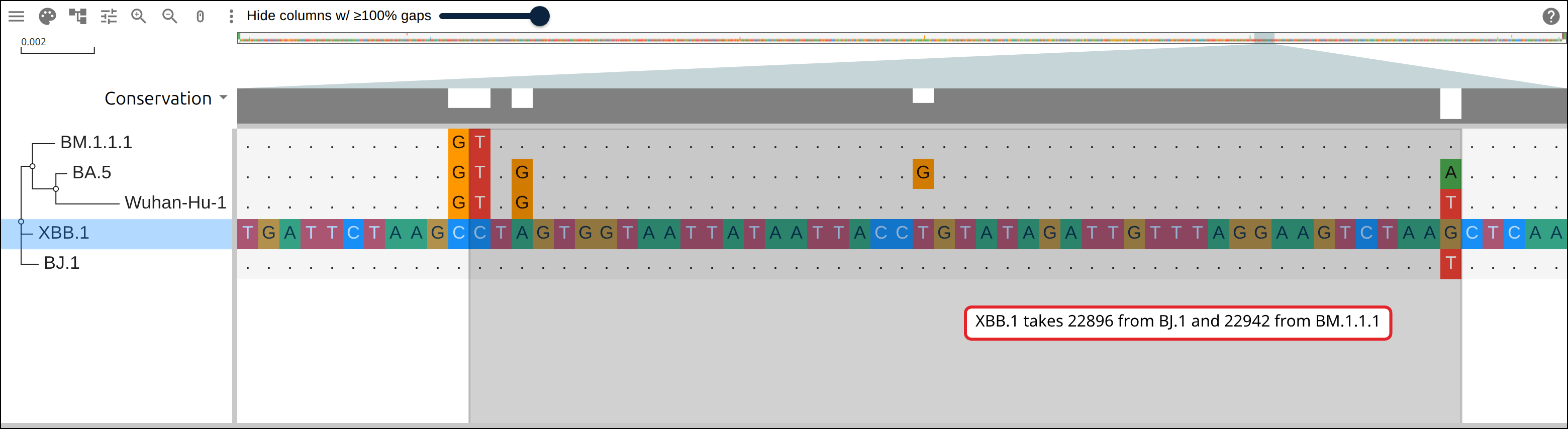

The six informative sites nearest the break, base by base:

position  Wuhan-Hu-1        BJ.1    BM.1.1.1       XBB.1        BA.5
   22664           C           A           C           A           C
   22895           G           C           G           C           G
   22896           T           C           T           C           T
   22942           T           T           G           G           A
   23010           T           C           T           T           T
   23030           T           G           T           T           T

Reproduce it end to end

build_recombination_breakpoint.sh runs the commands above in order:

1. It fetches the five genomes in one efetch request and the reference annotation as GFF3, and relabels each sequence to its row name.
2. ClustalW aligns the genomes and infers a neighbor-joining tree, which takes about four minutes on five whole genomes.
3. It projects each reference gene through the alignment into every row’s own coordinates, and the two spike subregions the same way.
4. It scans the XBB.1 row and the BA.5 control against each parent, pins the breakpoint with the informative sites, and writes the receptor-binding domain cut and the tracks the figure links carry.

It needs the tools under Prerequisites.

curl -O https://raw.githubusercontent.com/GMOD/JBrowseMSA/main/docs/tutorials/scripts/build_recombination_breakpoint.sh
bash build_recombination_breakpoint.sh

With no arguments the script writes the row table above and builds every file beside it. Pass your own table for another recombinant and another pair of parents:

bash build_recombination_breakpoint.sh my-rows.tsv out/
