JBrowseMSA

TEM beta-lactamase alleles and what they hydrolyze

NCBI’s Reference Gene Catalog names 233 TEM beta-lactamase alleles, many with a phenotype: broad-spectrum or extended-spectrum, each with or without inhibitor resistance. The 286-residue proteins differ from TEM-1 by a few substitutions, four of which the literature ties to extended-spectrum activity and three to inhibitor resistance. For 46 alleles, we:

  • align them and infer a tree
  • give each row its phenotype and its residue at seven named positions
  • draw the positions as strips and as bands
  • compare the two groups of positions against a control
  • open the result from one link

Prerequisites

  • curl
  • ClustalW, apt install clustalw on Debian or Ubuntu, brew install clustal-w on macOS. ClustalW both aligns and infers a tree, so this page needs no other aligner.
  • python3, standard library only

The data

Two files of the AMRFinderPlus database, and four this page writes from them. The build script fetches the two. Nothing to download.

What it isFile
The catalog, one row per allele with its phenotype and protein accessionReferenceGeneCatalog.txt
The reference proteins the catalog’s accessions point atAMRProt.fa
The files this page writes, hosted for the figure links
What it isFile
The 46 selected allelestem-alleles.tsv
Their alignmenttem.afa
Its treetem.nwk
The row tabletem-rowdata.json

1. Pick the alleles

The catalog’s product_name holds the phenotype and its gene_family column is blaTEM, so the selection takes the twelve lowest-numbered alleles of each phenotype:

number = re.fullmatch(r'blaTEM-(\d+)', row['allele'])
phenotype = row['product_name'].split(' class A')[0]
if not number or phenotype not in PHENOTYPES:
    continue
candidates[phenotype].append((int(number.group(1)), row))
broad-spectrum: 16 alleles in the catalog, 12 kept
extended-spectrum: 83 alleles in the catalog, 12 kept
inhibitor-resistant broad-spectrum: 30 alleles in the catalog, 12 kept
inhibitor-resistant extended-spectrum: 10 alleles in the catalog, 10 kept
46 alleles selected, lengths 285 aa x 1, 286 aa x 45

The 94 TEM alleles whose product name is a plain class A beta-lactamase, with no phenotype, stay out.

2. Align and infer a tree

clustalw -INFILE=tem.fasta -ALIGN -TYPE=PROTEIN -OUTORDER=INPUT \
  -OUTPUT=FASTA -OUTFILE=tem.afa
clustalw -INFILE=tem.afa -TREE -TYPE=PROTEIN -OUTPUTTREE=phylip
tr -d '[:space:]' < tem.ph > tem.nwk
46 rows, 286 alignment columns

One column per residue of TEM-1. TEM-178 is the only allele of another length, at 285 residues, and its deletion is the alignment’s one gap.

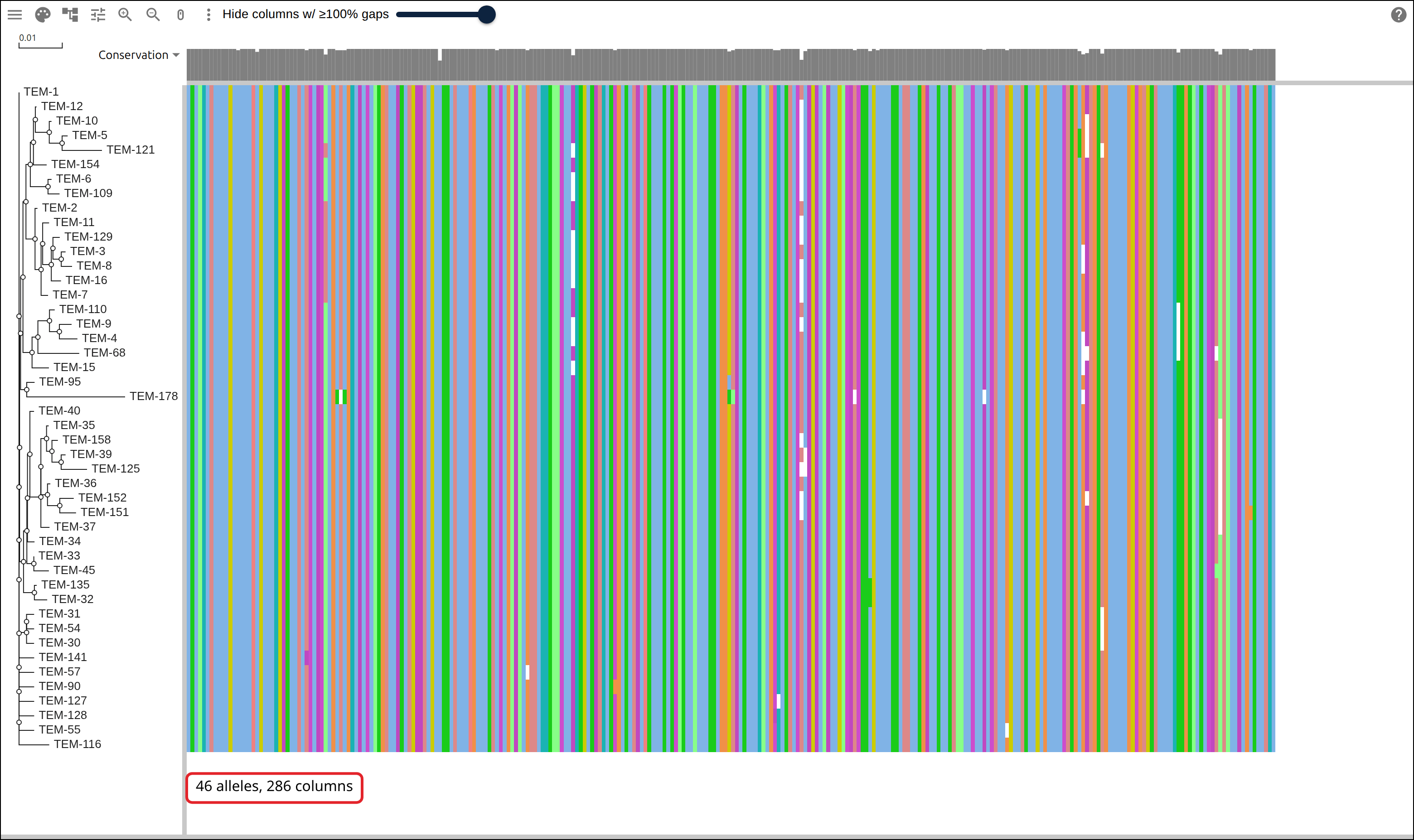

Forty-six alleles beside the tree ClustalW inferred from them, with the 31 varying positions as white and off-color specks in otherwise single-colored columns.

3. Write the row table

Each row gets its phenotype and its residue at the seven positions of step 4, keyed by allele name:

record = {'phenotype': phenotype[row], 'subclass': subclass[row]}
for position in fields:
    record[f'Ambler {position}'] = aligned[row][ambler_column[position]]
wrote ./tem-rowdata.json: 46 rows, 10 fields, 11 kB

Eleven kilobytes percent-encode past 8,000 characters, so the snapshot names the file instead and the viewer fetches it at startup:

{
  "type": "MsaView",
  "msaFilehandle": { "uri": "https://example.org/tem.afa" },
  "treeFilehandle": { "uri": "https://example.org/tem.nwk" },
  "treeMetadataFilehandle": { "uri": "https://example.org/tem-rowdata.json" },
  "encodings": [{ "channel": "tipLabel", "field": "phenotype" }]
}

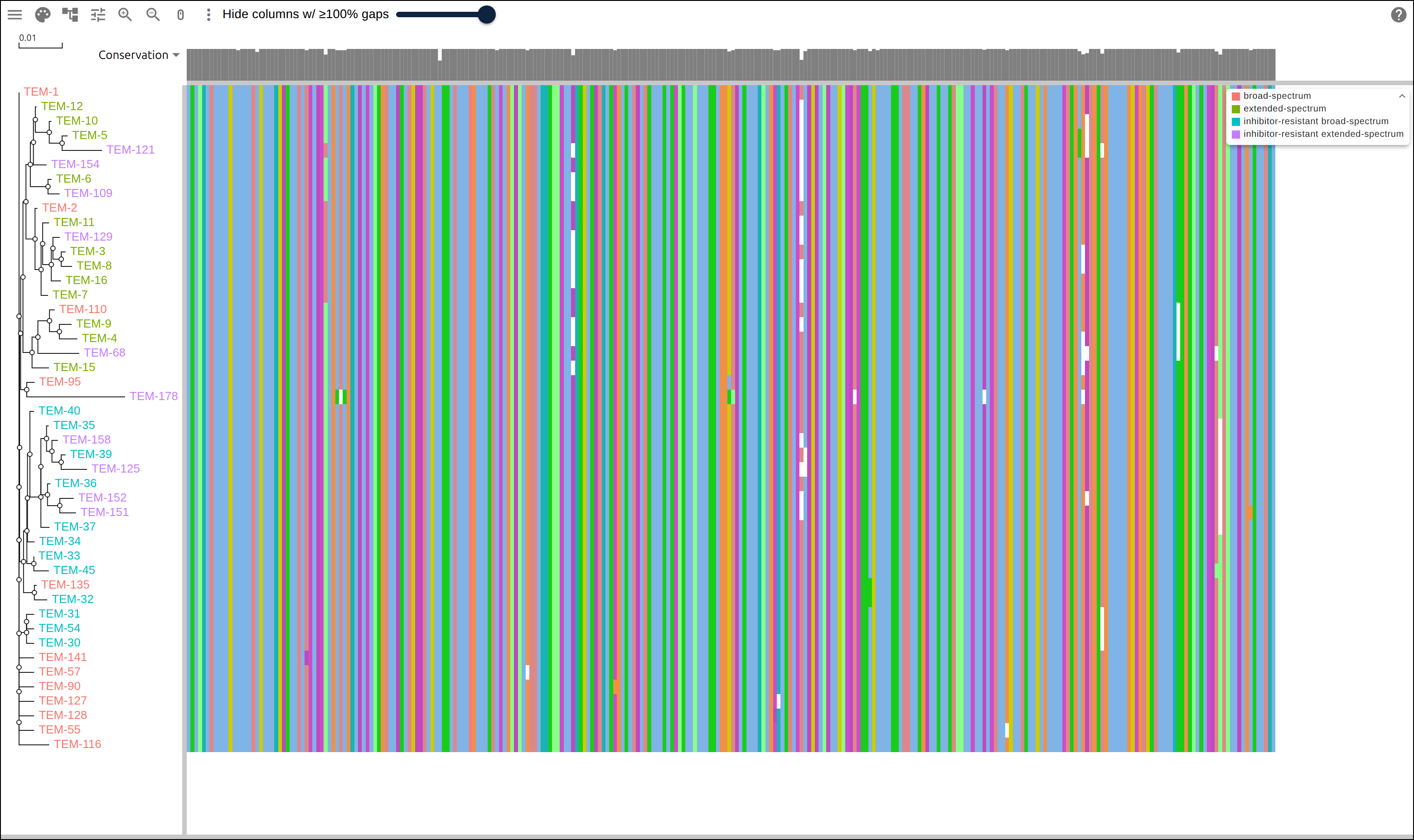

The tipLabel channel reading the phenotype field: olive for extended-spectrum, cyan for inhibitor-resistant broad-spectrum, purple for inhibitor-resistant extended-spectrum, salmon for broad-spectrum. Most olive rows are in the top half and most cyan rows in the bottom half, and 6 of the tree’s 44 internal nodes hold alleles of one phenotype.

4. Map Ambler numbering onto the columns

Ambler numbering runs from 3 to 290 over TEM-1’s 286 residues. The script maps each position through the TEM-1 row and checks the result against the residues the reviews name:

found = {p: reference[ambler_column[p]] for p in sorted(TEM1_RESIDUES)}
wrong = {p: r for p, r in found.items() if r != TEM1_RESIDUES[p]}
if wrong:
    raise SystemExit(f'Ambler mapping is off: {wrong}')
TEM-1 residues at the named Ambler positions: 69M 70S 73K 104E 130S 164R 166E 234K 238G 240E 244R 276N
the mapping is Ambler = residue index + 2 up to 238, + 3 from 240 to 252, + 4 from 254
Ambler [104, 164, 238, 240, 69, 244, 276] are columns 102, 162, 236, 237, 67, 241, 272

All twelve residues the reviews name for TEM-1, the catalytic S70 and K73 and the omega-loop E166 among them, come out where the mapping says.

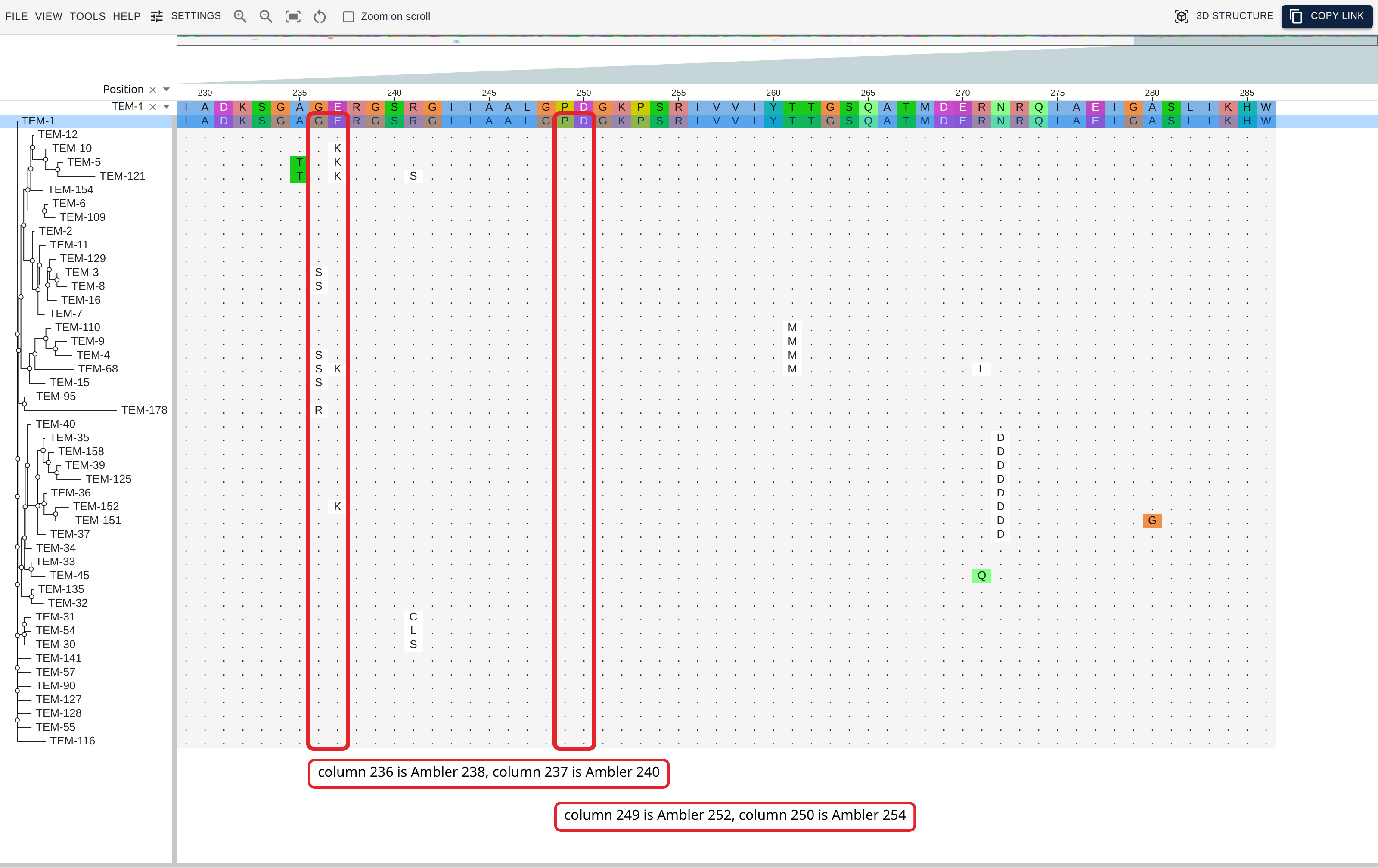

Columns 229 to 286 under the position ruler, every row read against the pinned TEM-1 row. Ambler numbering skips 239 and 253, so the boxed columns 236 and 237 are Ambler 238 and 240, and 249 and 250 are Ambler 252 and 254.

5. Draw the positions as strips

Four positions carry the extended-spectrum substitutions (104, 164, 238, 240), three the inhibitor-resistance ones (69, 244, 276), and the eighth is step 7’s control. Each is a strip row panel, and the eight share one title:

"rowPanels": [
  { "kind": "strip", "field": "phenotype", "width": 14, "header": "phenotype" },
  { "kind": "strip", "field": "Ambler 104", "width": 12, "header": "104", "title": "residue" }
]

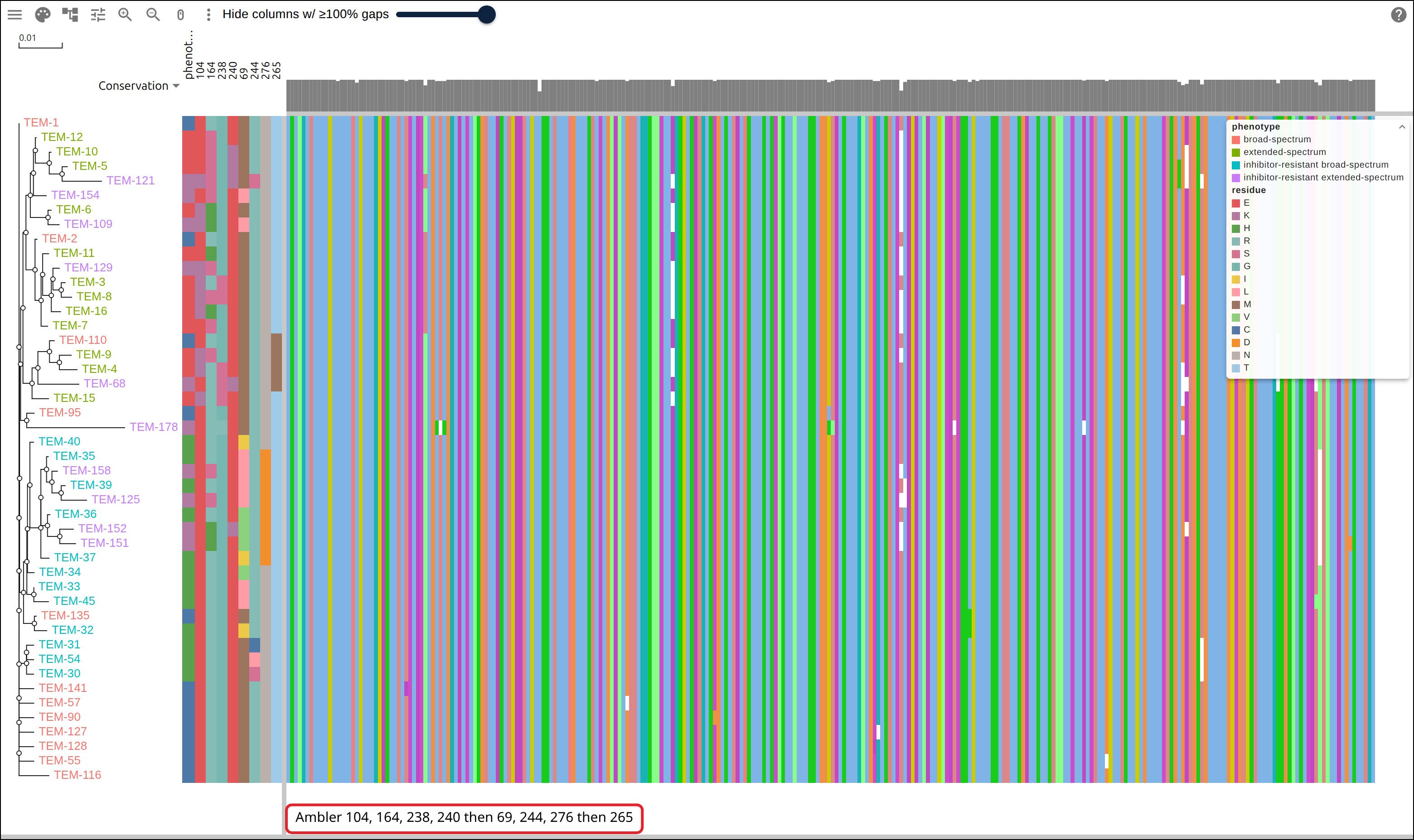

The phenotype strip and the eight position strips between the tree and the alignment, in the order 104, 164, 238, 240, 69, 244, 276, 265. Olive and purple rows show a minority residue in the first four strips, cyan rows in the next three.
Ambler 104: E 36, K 10
Ambler 164: R 29, S 11, H 6
Ambler 238: G 40, S 5, R 1
Ambler 240: E 41, K 5
Ambler 69: M 31, L 8, V 4, I 3
Ambler 244: R 42, S 2, C 1, L 1
Ambler 276: N 38, D 8
Ambler 265: T 42, M 4

6. Compare the two groups of positions

For each allele, whether it differs from TEM-1 at any of the four extended-spectrum positions, and at any of the three inhibitor-resistance ones:

ESBL positions 104/164/238/240: broad-spectrum 0/12, extended-spectrum 12/12, inhibitor-resistant broad-spectrum 0/12, inhibitor-resistant extended-spectrum 10/10
inhibitor positions 69/244/276: broad-spectrum 0/12, extended-spectrum 0/12, inhibitor-resistant broad-spectrum 12/12, inhibitor-resistant extended-spectrum 7/10

Every extended-spectrum allele carries a substitution at 104, 164, 238 or 240 and no broad-spectrum allele does, and the three inhibitor-resistance positions split the other way.

The eight positions also go over the alignment columns as highlights, which take 1-based columns where a band has no row, so Ambler 238 is start: 236:

"highlights": [{ "start": 236, "end": 236, "label": "Ambler 238" }]

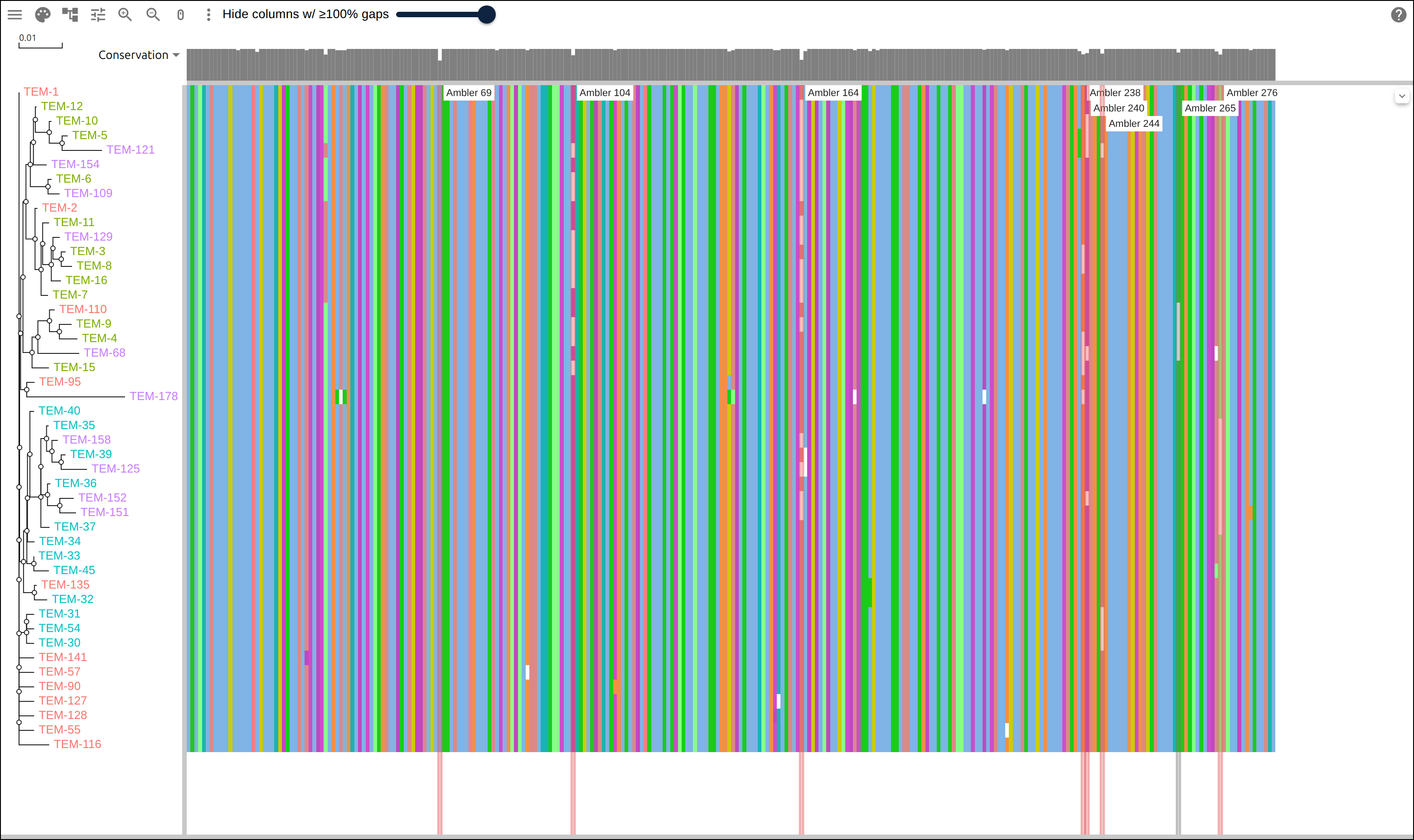

Eight bands over the 286 columns, seven red and the control grey, each labeled with its Ambler position.

relativeTo names a row, and the viewer draws a residue matching TEM-1 as a dot and a differing one as its letter, under a pinned copy of the TEM-1 row:

"relativeTo": "TEM-1"

In R the same field is msaview(relative_to = "TEM-1") or + stat_msa_diff("TEM-1"), and in Python the relative_to trait.

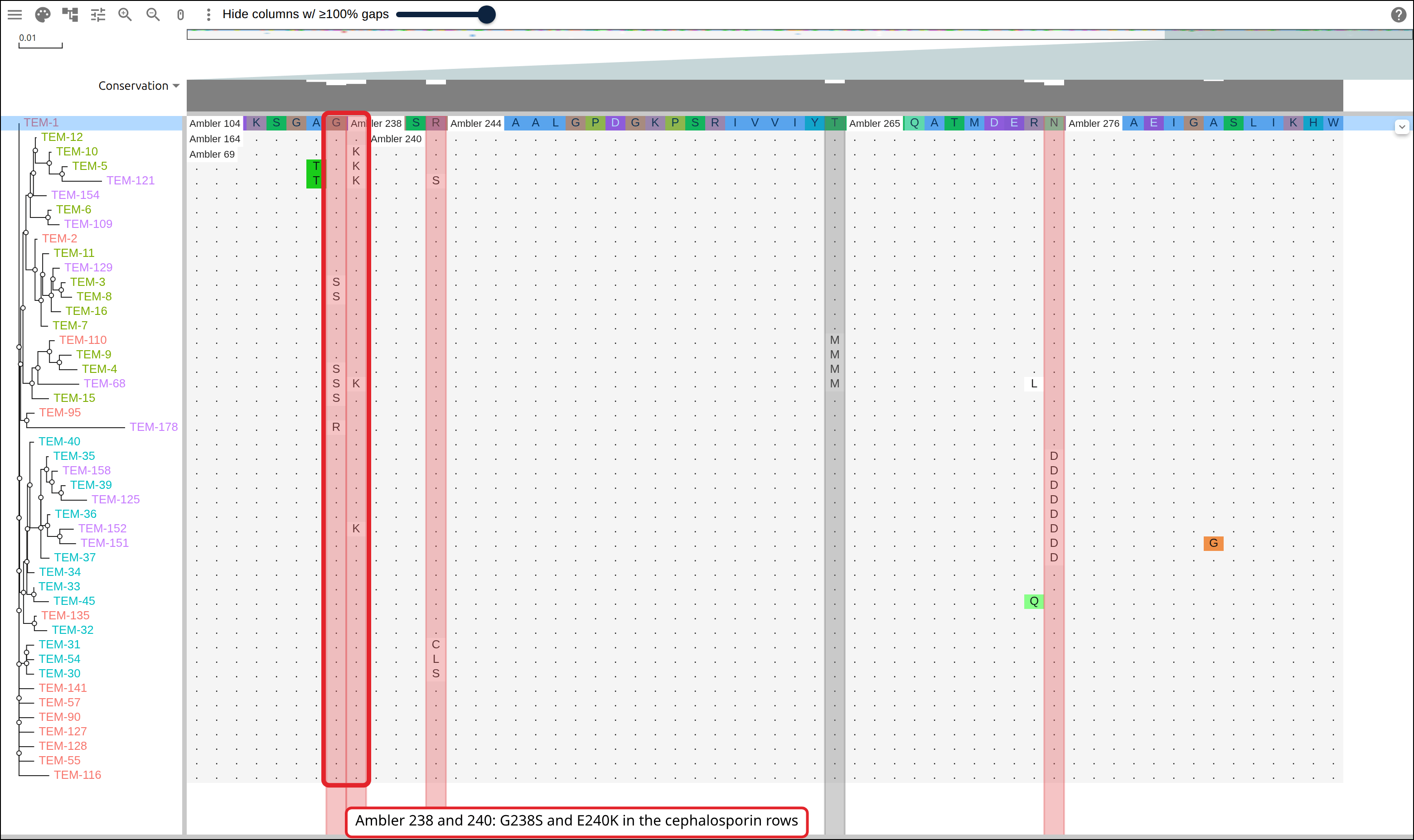

Ambler 238 and 240 at residue resolution, every row read against TEM-1. The boxed columns read G and E in the pinned TEM-1 row, S and K in olive and purple rows, and a dot in every salmon and cyan row.

7. Read the control position

For every variable position, how its residues split across the four phenotypes, scored by Cramer’s V over the residue-by-phenotype table:

position  residues                  Cramer's V
     104  36E,10K                         0.60
     164  29R,11S,6H                      0.57
     276  38N,8D                          0.48
      69  31M,8L,4V,3I                    0.47
      39  38Q,8K                          0.42
     240  41E,5K                          0.39
     238  40G,5S,1R                       0.37
     ...
     265  42T,4M                          0.22

The control is the lowest-scoring position with minor residues in at least three alleles, so the column has something to read:

control position: Ambler 265, T in TEM-1, minor residues in 4 alleles, Cramer's V 0.22

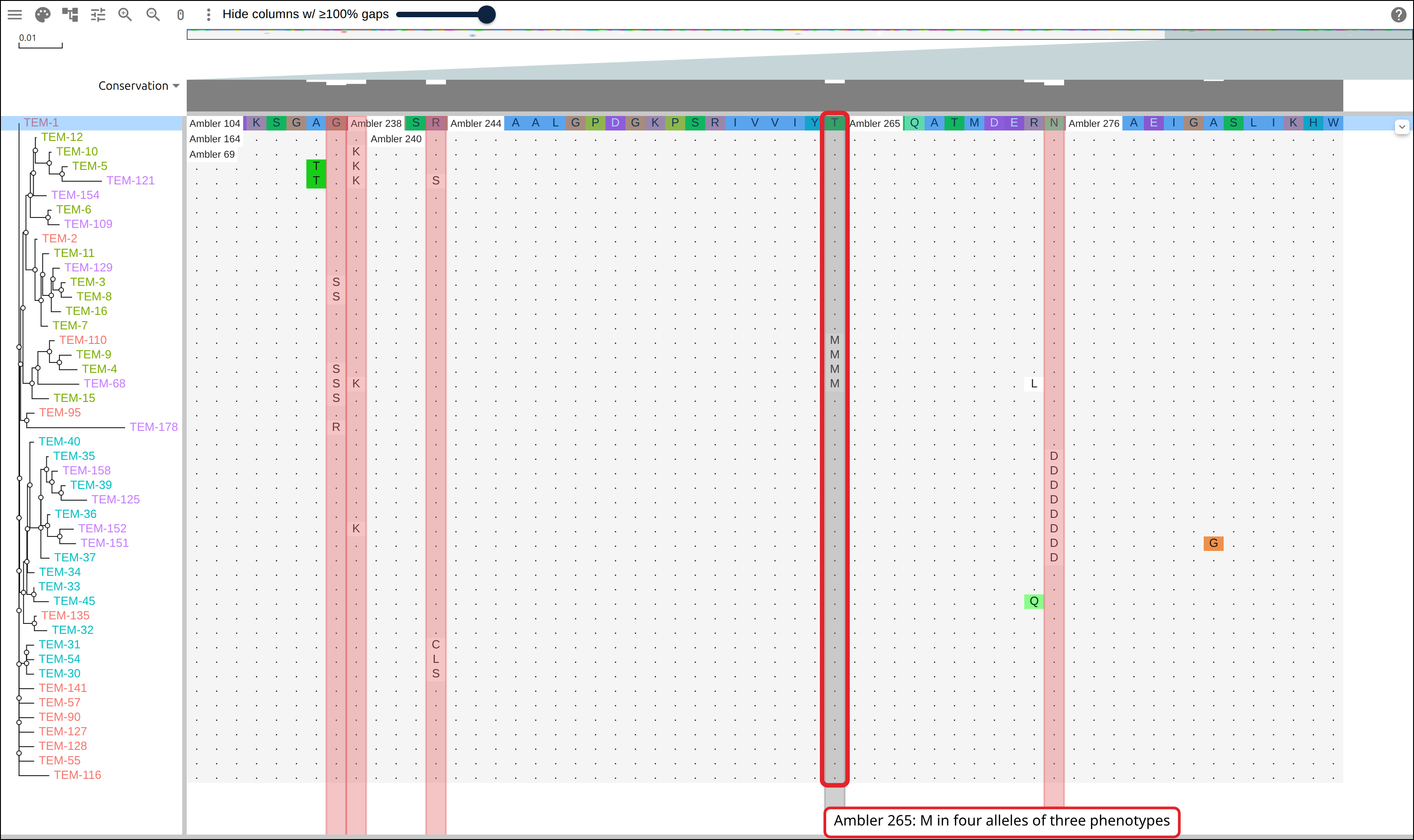

Ambler 265 at the resolution of the figure above. The four alleles reading M cover three of the four phenotypes: TEM-110 broad-spectrum, TEM-9 and TEM-4 extended-spectrum, TEM-68 inhibitor-resistant extended-spectrum.

8. Check it against the raw data

The check reads the letters from the unaligned NCBI sequences by Ambler arithmetic and compares them with the row table:

letters = [unaligned[row][residue_of_ambler[p]] for p in fields]
from_table = [table[row][f'Ambler {p}'] for p in fields]
if letters != from_table:
    raise SystemExit(f'{row}: the FASTA reads {letters}, the row table {from_table}')
allele     104  164  238  240   69  244  276  265  phenotype
TEM-1        E    R    G    E    M    R    N    T  broad-spectrum
TEM-2        E    R    G    E    M    R    N    T  broad-spectrum
TEM-3        K    R    S    E    M    R    N    T  extended-spectrum
TEM-10       E    S    G    K    M    R    N    T  extended-spectrum
TEM-12       E    S    G    E    M    R    N    T  extended-spectrum
TEM-30       E    R    G    E    M    S    N    T  inhibitor-resistant broad-spectrum
TEM-32       E    R    G    E    I    R    N    T  inhibitor-resistant broad-spectrum
TEM-125      E    S    G    E    L    R    D    T  inhibitor-resistant extended-spectrum

TEM-3 reads E104K and G238S, TEM-10 R164S and E240K, TEM-12 R164S, TEM-30 R244S, TEM-32 M69I, and TEM-125 R164S with M69L and N276D, the substitutions the primary literature gives for each allele.

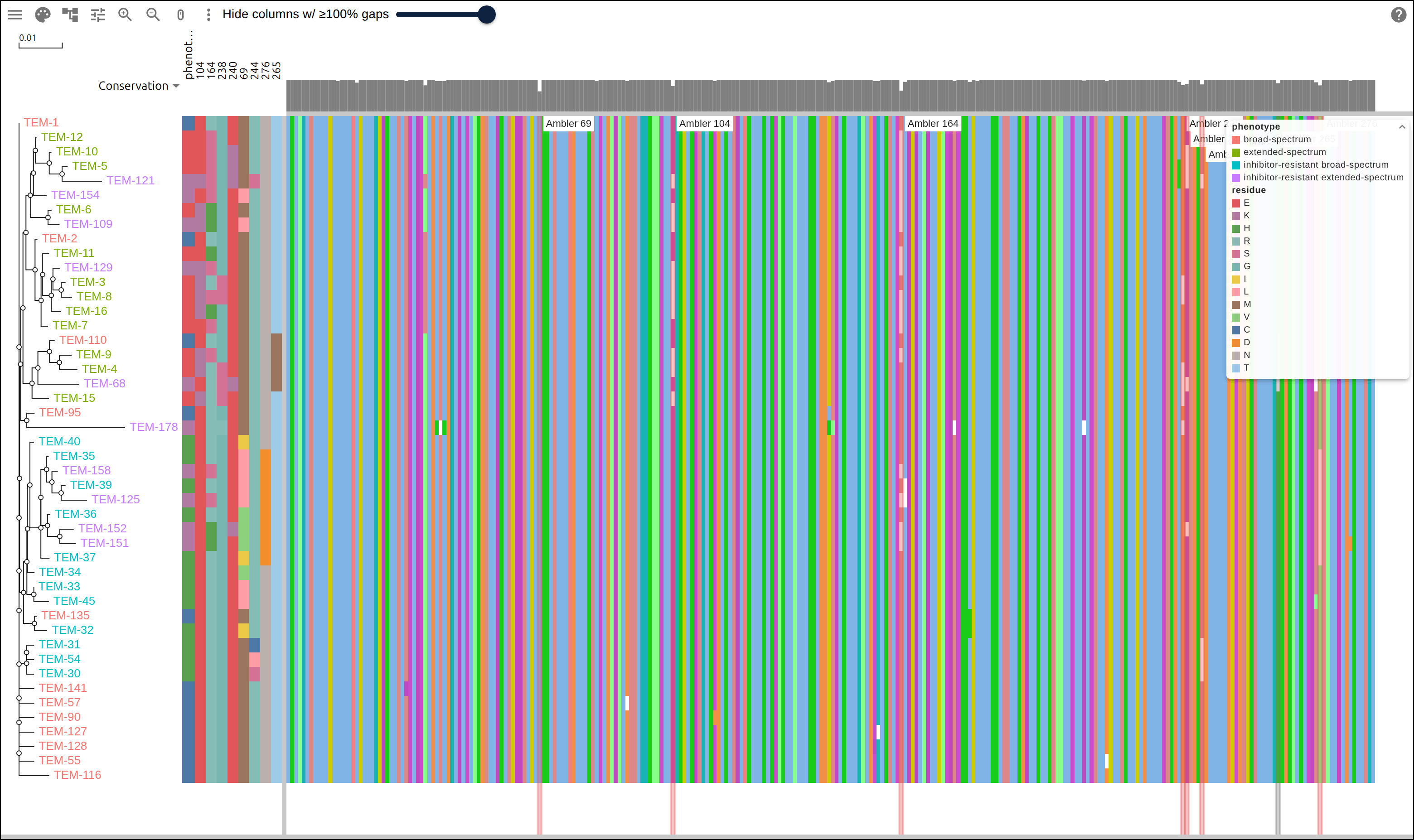

One view over the three hosted files, with the tipLabel encoding, the nine strips and the eight bands.

ggmsaview reads the same three files, geom_msa_rowdata() takes the row table as jsonlite::fromJSON() returns it, and one loop adds a strip per Ambler position:

library(ggmsaview)
data <- "https://gmod.org/JBrowseMSA/demo/data/tem/"
rows <- jsonlite::fromJSON(paste0(data, "tem-rowdata.json"))
phenotype <- c(
  "broad-spectrum" = "#4e79a7", "extended-spectrum" = "#e15759",
  "inhibitor-resistant broad-spectrum" = "#59a14f",
  "inhibitor-resistant extended-spectrum" = "#b07aa1"
)
residue <- c(C = "#4e79a7", D = "#f28e2b", E = "#e15759", G = "#76b7b2",
  H = "#59a14f", I = "#edc948", K = "#b07aa1", L = "#ff9da7", M = "#9c755f",
  N = "#bab0ac", R = "#86bcb6", S = "#d37295", T = "#a0cbe8", V = "#8cd17d")
ambler <- c(104, 164, 238, 240, 69, 244, 276, 265)
column <- c(102, 162, 236, 237, 67, 241, 272, 261)

w <- msaview(msa = paste0(data, "tem.afa"), tree = paste0(data, "tem.nwk"),
    color_scheme = "clustalx_protein_dynamic") +
  geom_msa_rowdata(rows) +
  scale_row_color("phenotype", channel = "tipLabel") +
  geom_msa_strip("phenotype", range = phenotype)
for (a in ambler) {
  w <- w + geom_msa_strip(paste("Ambler", a), range = residue,
    header = as.character(a), title = "residue")
}
w <- w + geom_msa_highlight(data.frame(start = column, end = column,
  label = paste("Ambler", ambler),
  color = ifelse(ambler == 265, "rgba(120,120,120,0.35)",
    "rgba(225,87,89,0.35)")))
w
ggplot2::ggsave("tem_alleles-final-r.png",
  msaview_plot(w, tracks = "conservation"), width = 12, height = 9)

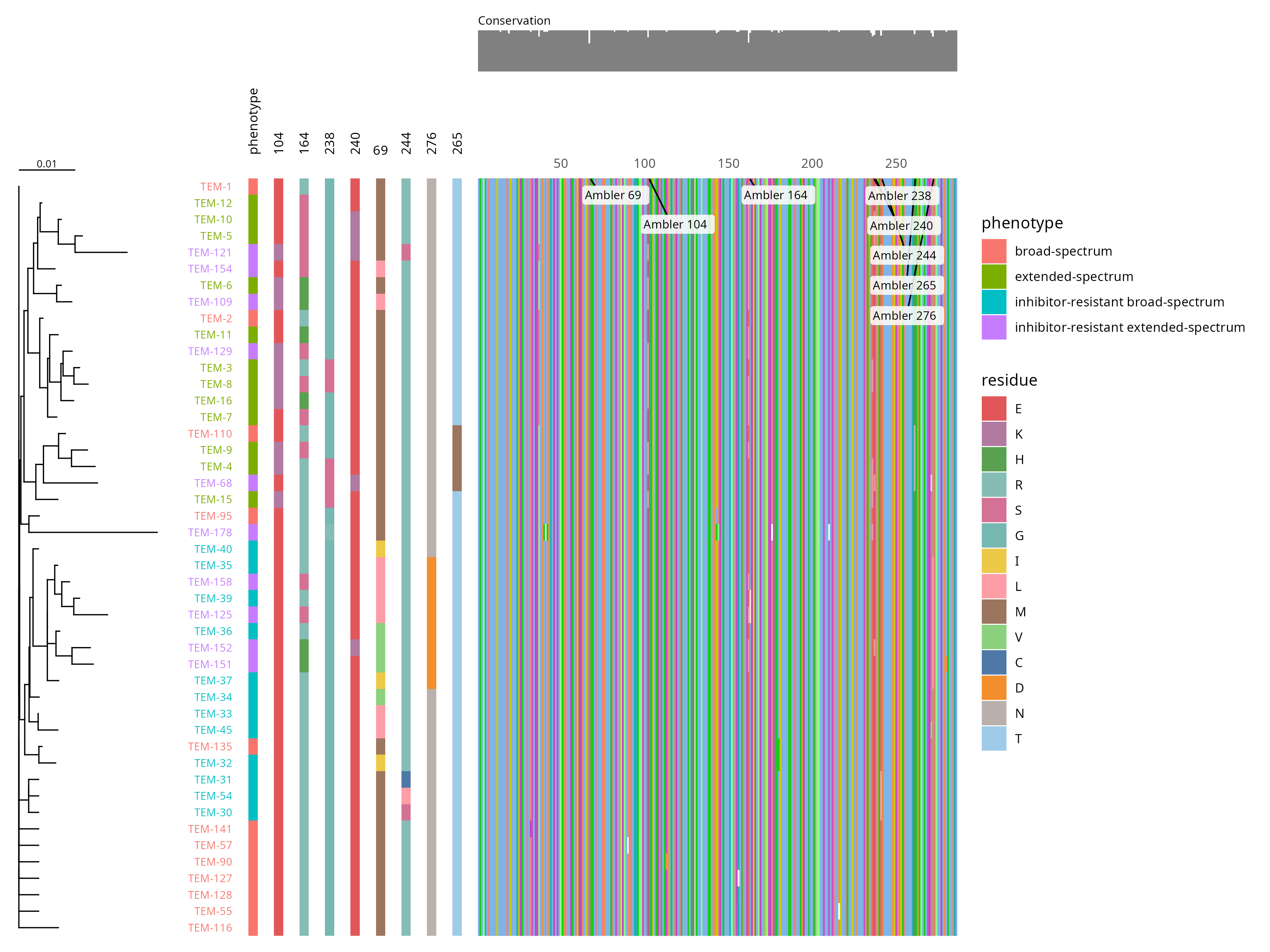

ggmsaview draws the same strips, bands and conservation track, with one key for the residue strips and each row name in its phenotype’s color.

Reproduce it end to end

build_tem_alleles.sh runs the commands above in order:

  1. It downloads the catalog and the reference proteins, then keeps the twelve lowest-numbered alleles of each phenotype.
  2. ClustalW aligns the alleles and infers a tree.
  3. It maps each Ambler position through the TEM-1 row and writes the row table.
  4. It picks the control position and checks the row table against the unaligned NCBI sequences.

The script needs the tools under Prerequisites.

curl -O https://raw.githubusercontent.com/GMOD/JBrowseMSA/main/docs/tutorials/scripts/build_tem_alleles.sh
bash build_tem_alleles.sh

The script prints every number on this page.

See also

References

  • Feldgarden M, Brover V, Gonzalez-Escalona N, et al. AMRFinderPlus and the Reference Gene Catalog facilitate examination of the genomic links among antimicrobial resistance, stress response, and virulence. Sci Rep 11:12728.
  • Ambler RP, Coulson AF, Frere JM, et al. A standard numbering scheme for the class A beta-lactamases. Biochem J 276:269-270.
  • Bradford PA. Extended-spectrum beta-lactamases in the 21st century. Clin Microbiol Rev 14:933-951.
  • Cantón R, Morosini MI, de la Maza OM, de la Pedrosa EG. IRT and CMT beta-lactamases and inhibitor resistance. Clin Microbiol Infect 14 Suppl 1:53-62.
  • Salverda ML, De Visser JA, Barlow M. Natural evolution of TEM-1 beta-lactamase: experimental reconstruction and clinical relevance. FEMS Microbiol Rev 34:1015-1036.
