An RNA family, from a model and six genomes

A riboswitch folds up in front of the gene it controls and binds a small molecule through its fold. Its sequence can drift as long as every base pair keeps two complementary sides, so a change on one side comes with a change on the other. For the SAM-I riboswitch, Rfam RF00162, in six bacterial genomes, we:

  • search the genomes with the family’s covariance model
  • name each hit by the gene it leads
  • align the hits to the model and put the pseudoknot back
  • infer a tree and open the result from one link
  • read the base pairs, the ligand contacts and the tree, then check the structure against the rows

Prerequisites

  • curl and python3
  • Infernal 1.1 for cmsearch and cmalign, apt install infernal on Debian or Ubuntu, brew install infernal on macOS
  • FastTree, apt install fasttree, or brew install fasttree

The data

Rfam release 15.1 for the family, NCBI RefSeq for the genomes and their annotation, and the RCSB PDB for one crystal structure. Nothing to download: the commands below and the build script fetch these.

What it isFile
The RF00162 covariance modelcm
The RF00162 seed alignment, 457 curated sequences with the consensus structurestockholm
One RefSeq genome per request, for example Bacillus subtilis 168; the other five are NC_003869.1, NC_003030.1, NC_003210.1, NC_007795.1 and NC_009089.1efetch.fasta
The annotation of a 1500 nt window of one of those records, which names the gene a hit leads, one request per hit, for exampleefetch.ft
The sequence of the crystallized aptamer, PDB 2GIS2GIS
The files this page writes, hosted for the figure links
What it isFile
The finished alignment every link on this page openssam-riboswitch.sto

1. Search six genomes with the family model

The SAM-I riboswitch sits in the leader of methionine and cysteine biosynthesis genes in Firmicutes and binds S-adenosylmethionine, the product those genes lead to. Rfam publishes a seed alignment of 457 curated sequences with a consensus secondary structure, and a covariance model built from it that scores a candidate on sequence and fold at once.

curl -o RF00162.cm https://rfam.org/family/RF00162/cm
curl -o RF00162.seed.sto https://rfam.org/family/RF00162/alignment/stockholm

The genomes are six Firmicutes, one FASTA at a time from NCBI and concatenated: B. subtilis 168, Caldanaerobacter subterraneus subsp. tengcongensis MB4, Clostridium acetobutylicum ATCC 824, Listeria monocytogenes EGD-e, Staphylococcus aureus NCTC 8325 and Clostridioides difficile 630.

# --cut_ga applies the family's curated gathering threshold, the one Rfam uses
# to decide membership
cmsearch --cut_ga --noali --cpu 4 --tblout hits.tbl RF00162.cm all-genomes.fa

The search over six chromosomes takes seconds, and the table has 37 rows:

37 hits
  NC_000964.3  11 hits
  NC_003030.1  7 hits
  NC_003210.1  7 hits
  NC_003869.1  3 hits
  NC_007795.1  4 hits
  NC_009089.1  5 hits

B. subtilis has eleven, the species where Grundy and Henkin first described the S box regulon.

2. Name each row by the gene it leads

A riboswitch is a leader sequence, so each row takes the name of the gene downstream of it, out of the annotation of a 1500 nt window. The hit at NC_000964.3:1180802-1180685 runs on the minus strand, so the window is the 1500 nt below it, read in the same direction:

curl -s "https://eutils.ncbi.nlm.nih.gov/entrez/eutils/efetch.fcgi?db=nuccore\
&id=NC_000964.3&seq_start=1179185&seq_stop=1180684&strand=2&rettype=ft&retmode=text"
90	>1500	gene
			gene	samT
			locus_tag	BSU_11010
90	>1500	CDS
			product	bifunctional homocysteine S-methyltransferase using (R,S)AdoMet and methylenetetrahydrofolate reductase [NAD(P)H]

The first CDS reading forward in that frame is the gene downstream, and its symbol with a four-letter species prefix makes the row name Bsub_samT. Where the annotation has no symbol the script uses the locus tag, as in Cdif_CD630_RS06510 in the figures below.

35 of 37 hits named by a gene, 2 with no same-strand gene within 1500 nt

The two unnamed hits keep their coordinate as a name, Cace_1073888 and Saur_2391667.

3. Align the hits to the model

cmalign aligns each hit back to the same model, so a column means one consensus position in every row:

cmalign --noprob -o cmalign.sto RF00162.cm hits.fa
37 rows x 187 columns, 108 consensus columns
62 columns are gaps in 90% or more of the rows

The hits run from 92 to 157 nt, and the rows at the long end put most of the 79 insert columns in one place, the variable stem loop.

4. Put the pseudoknot back

A covariance model pairs columns the way brackets nest, so cmalign writes back only the nested helices its model holds. The four pairs of the SAM-I pseudoknot cross a helix, and Rfam marks them in the seed’s SS_cons with A for an opening end and a for its partner.

The seed and the new alignment both mark their consensus columns in #=GC RF, so the k-th consensus column of one is the k-th of the other. The build script copies the seed’s SS_cons across that correspondence, along with RNA_ligand_SAM, the columns Rfam marks as touching the ligand.

4 pseudoknot pairs copied from the seed

5. Infer a tree

FastTree reads aligned DNA FASTA, so the build script converts the Stockholm with U written as T and Rfam’s insert gaps written as -:

FastTree -nt -gtr -nosupport tree-input.afa > family.nwk

The script then writes the Newick into the Stockholm as the #=GF NH line the viewer reads a tree from.

The alignment, its structure, the SAM contacts and the tree travel in one Stockholm file, so a #data= link needs only its URL.

{
  "msaview": {
    "type": "MsaView",
    "colorSchemeName": "nucleotide",
    "colWidth": 8,
    "rowHeight": 15,
    "msaFilehandle": { "uri": "https://example.org/sam-riboswitch.sto" }
  }
}

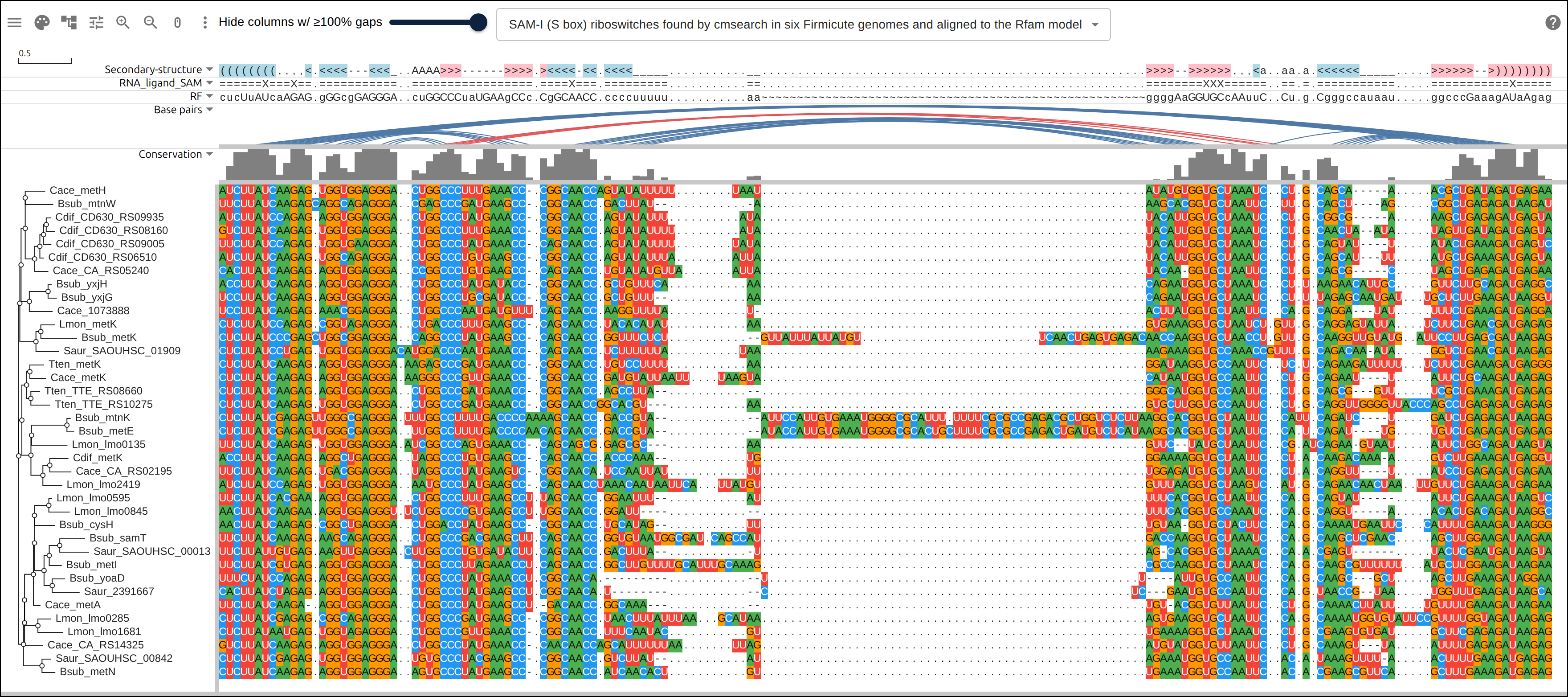

37 riboswitches over 187 columns, with the #=GF NH tree on the left. The Secondary-structure track and the Base pairs arcs both come from #=GC SS_cons, the arcs blue for the nested helices and red for the pseudoknot, and the two tracks below them are RNA_ligand_SAM, an X at each ligand contact, and RF, the model’s consensus sequence. The blank band across the middle is the variable stem loop.

ggmsaview needs only the same URL. w alone opens the viewer in RStudio or a notebook, and msaview_plot() draws the same view as a ggplot2 figure:

library(ggmsaview)
w <- msaview(
  msa = "https://gmod.org/JBrowseMSA/demo/data/rna/sam-riboswitch.sto",
  color_scheme = "nucleotide"
)
w
ggplot2::ggsave("rna-family-overview-r.png", msaview_plot(w),
  width = 10, height = 9)

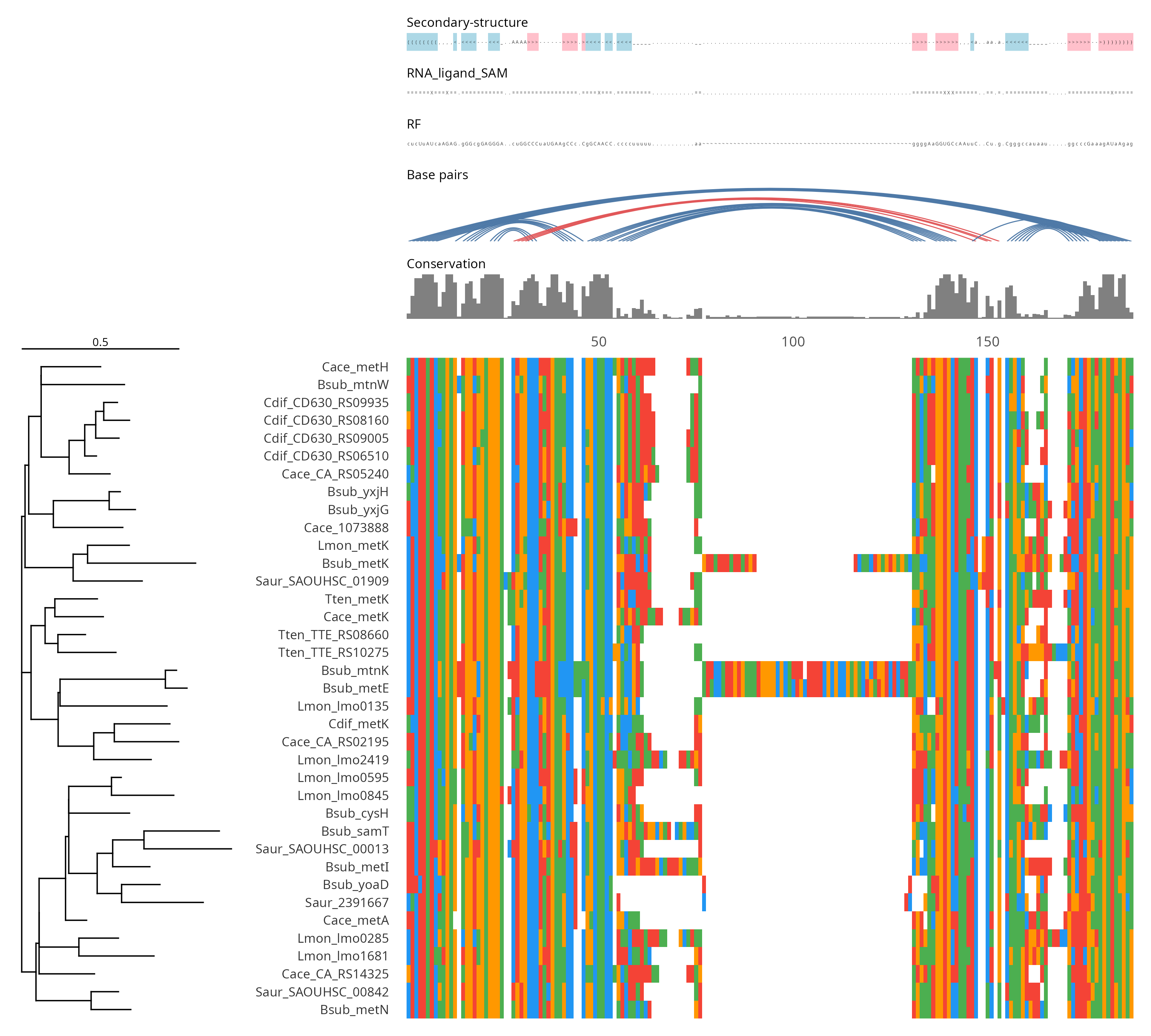

The 37 riboswitches as a ggplot2 figure, under the file’s three #=GC rows, the Base pairs arcs and the conservation bars, with the #=GF NH tree on the left.

7. Read the pseudoknot off the arcs

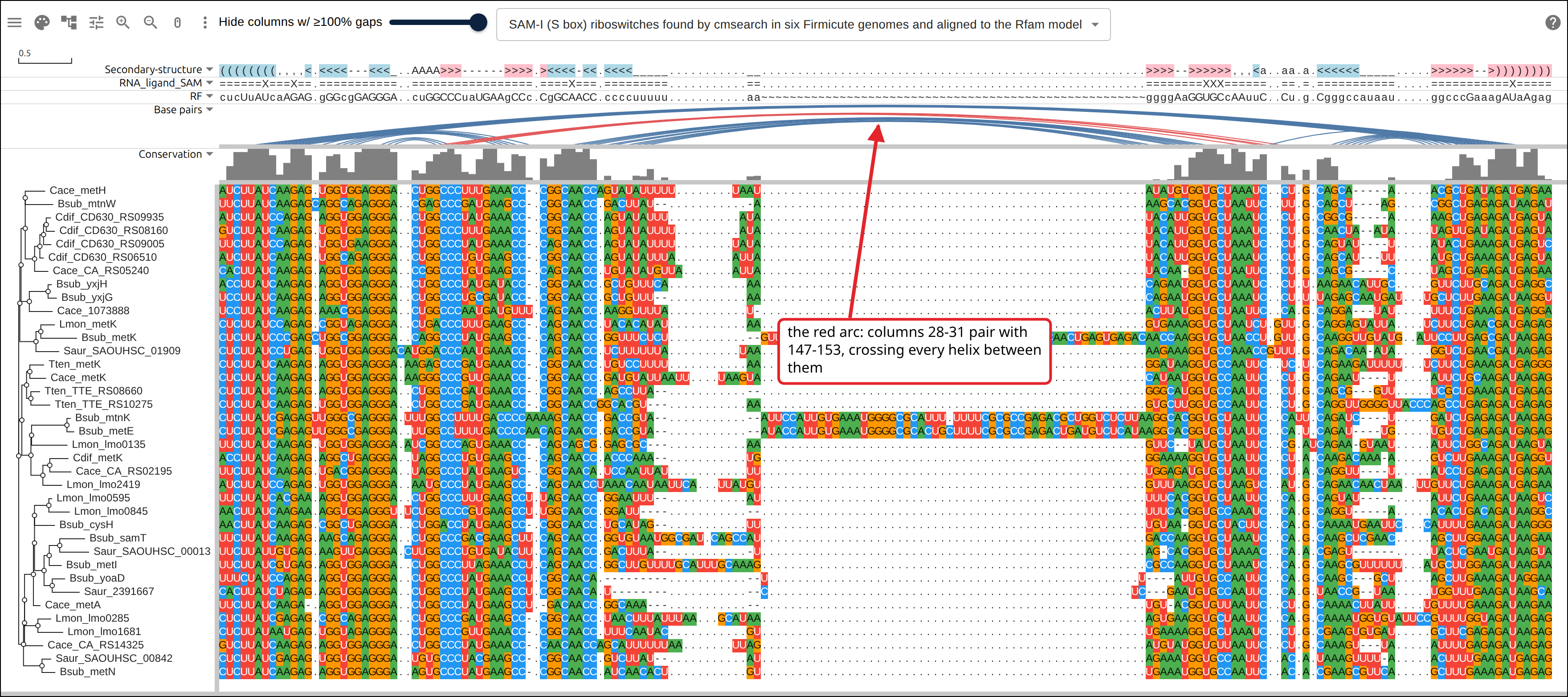

The pseudoknot marked on the same view. Its four pairs join columns 28-31 to 147-153, with the red arcs crossing blue helix arcs, and the structure track records the crossing with the letters A and a.

8. Read one helix pair by pair

The helix from column 13 to column 46 fills the frame below.

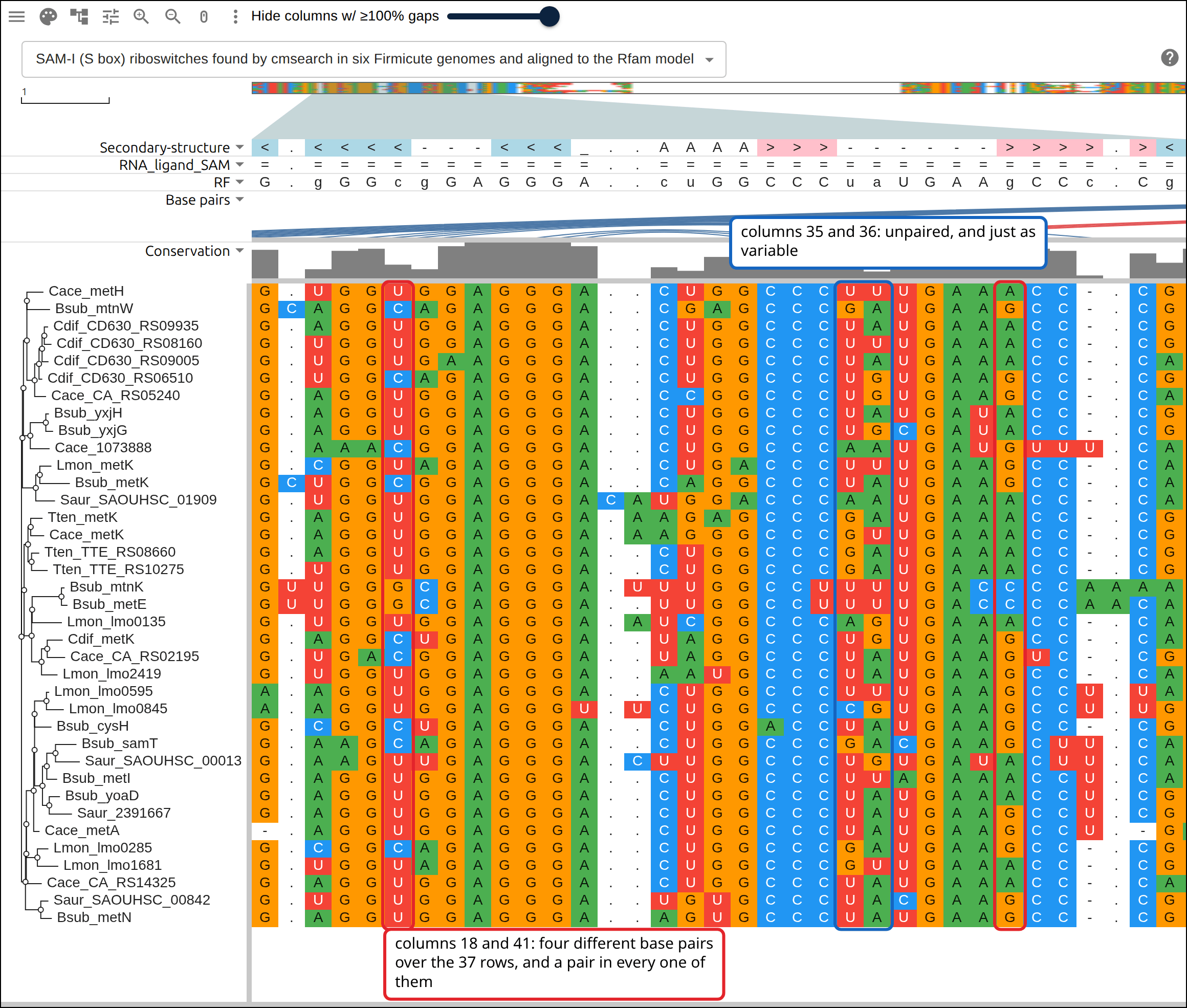

Columns 18 and 41 in red, columns 35 and 36 in blue. Column 18 is U in 26 rows, C in 9 and G in 2, and read against column 41 the pairs are UA in 17 rows, CG in 9, UG in 9 and GC in 2, four different base pairs and a base pair in all 37 rows.

Columns 35 and 36 in the same frame are the control, which SS_cons leaves unpaired. Column 36 varies more than column 18 does, its commonest base holding 57% of the rows against 26 of 37, and step 11 searches the alignment for whatever does pair with it.

9. Mark where the ligand touches

Seven columns of the Rfam consensus are annotated as SAM contacts. The #=GC RNA_ligand_SAM track marks each with an X, and the snapshot repeats them as highlights, a labeled band down the rows.

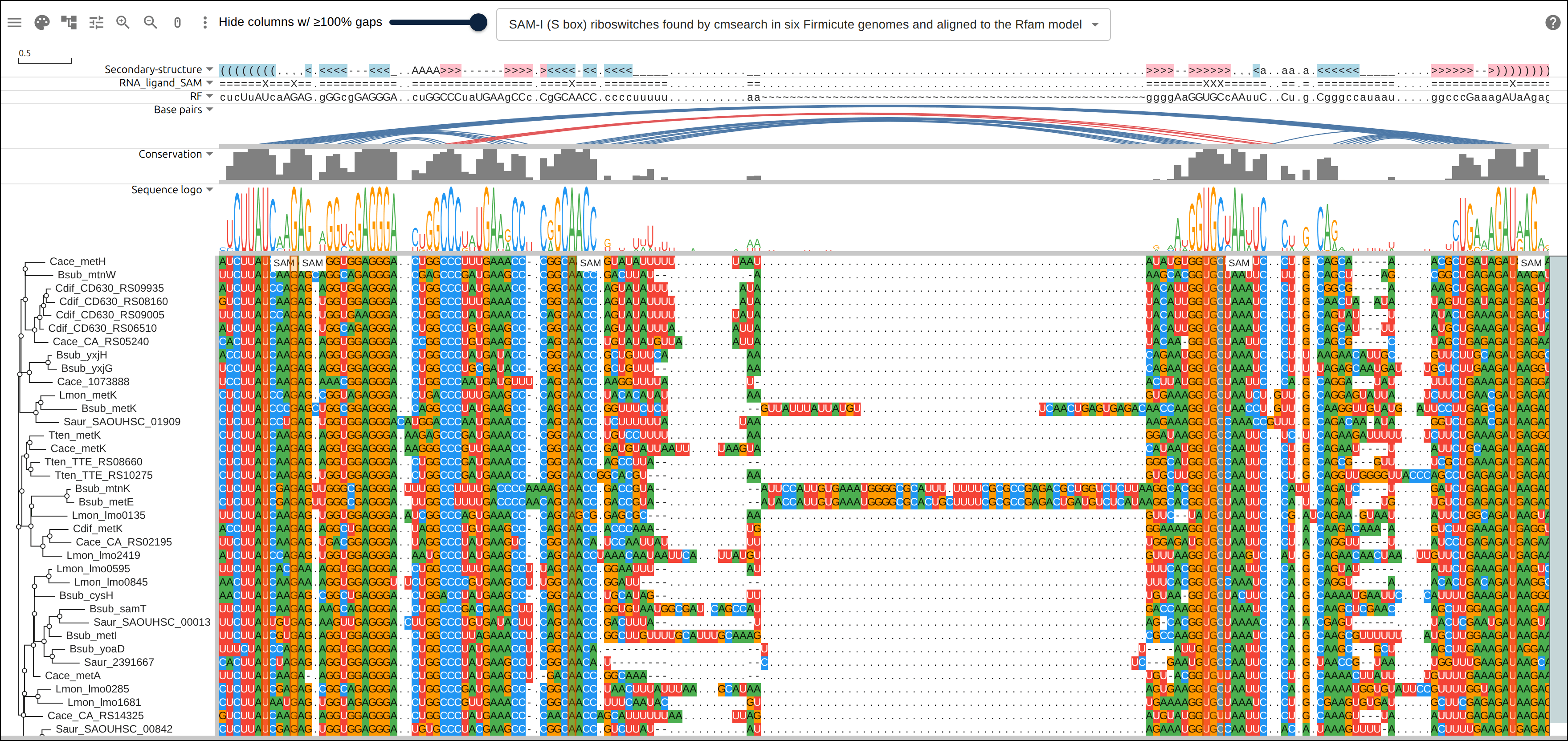

Columns 7, 11, 50, 139, 140, 141 and 182, with the sequence logo track switched on above them. Averaged over the seven, the commonest base holds 99.2% of the rows, against 75.5% for the paired columns and 78.0% for the columns that are neither paired nor in contact.

Columns 139 to 141 are one side of a helix whose other side is at columns 48 to 50.

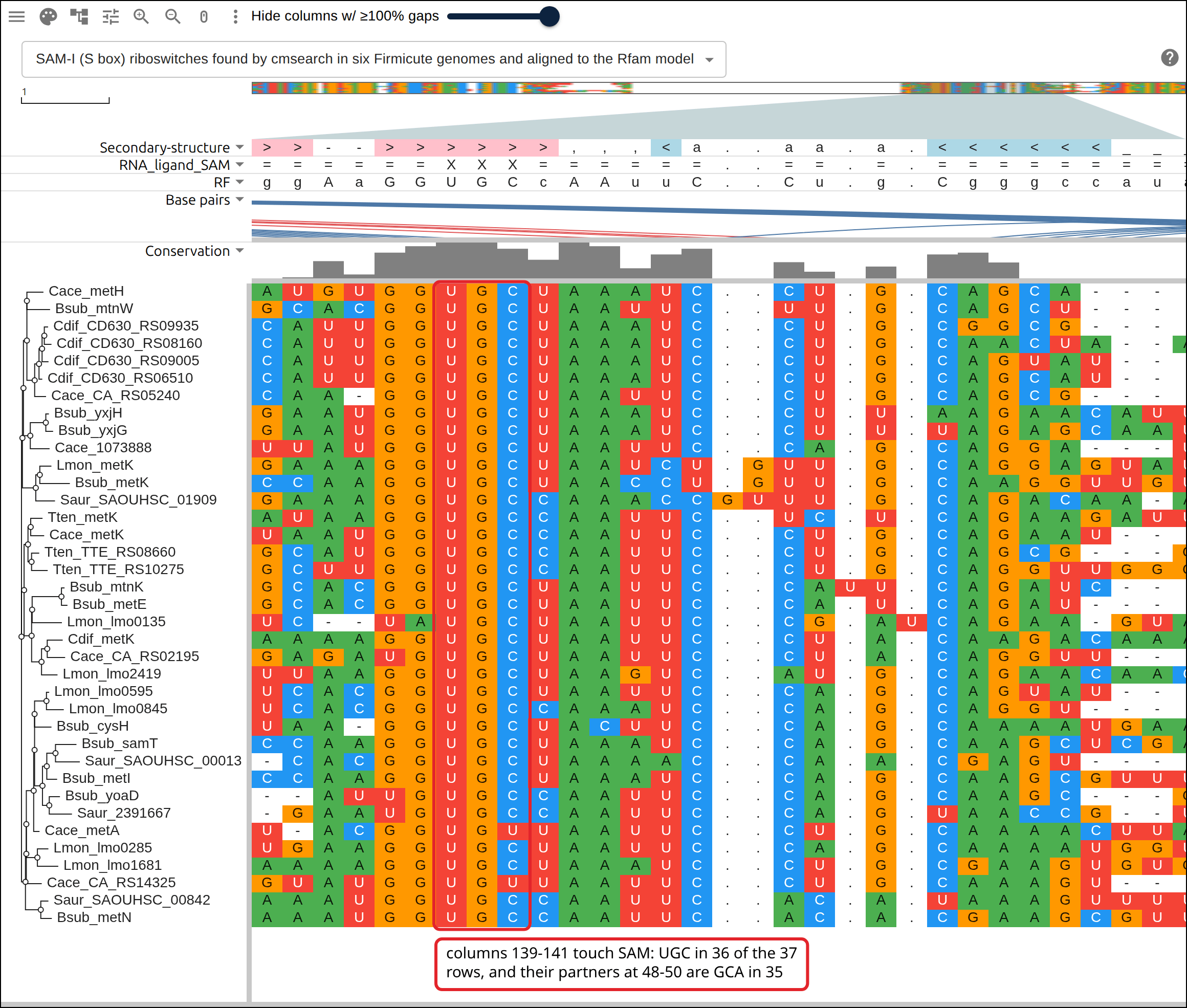

Columns 139, 140 and 141 read U, G and C down the rows. They pair with 50, 49 and 48, and those pairs are AU in 37 rows, CG in 37 and GC in 35, one base pair each rather than the four of columns 18 and 41.

PDB 2GIS, the crystal structure Rfam took those contacts from, was cut out of one of these six genomes, and its construct shares 48 nt with Tten_TTE_RS08660, the C. subterraneus row, against 34 nt for the next row.

10. Read the tree

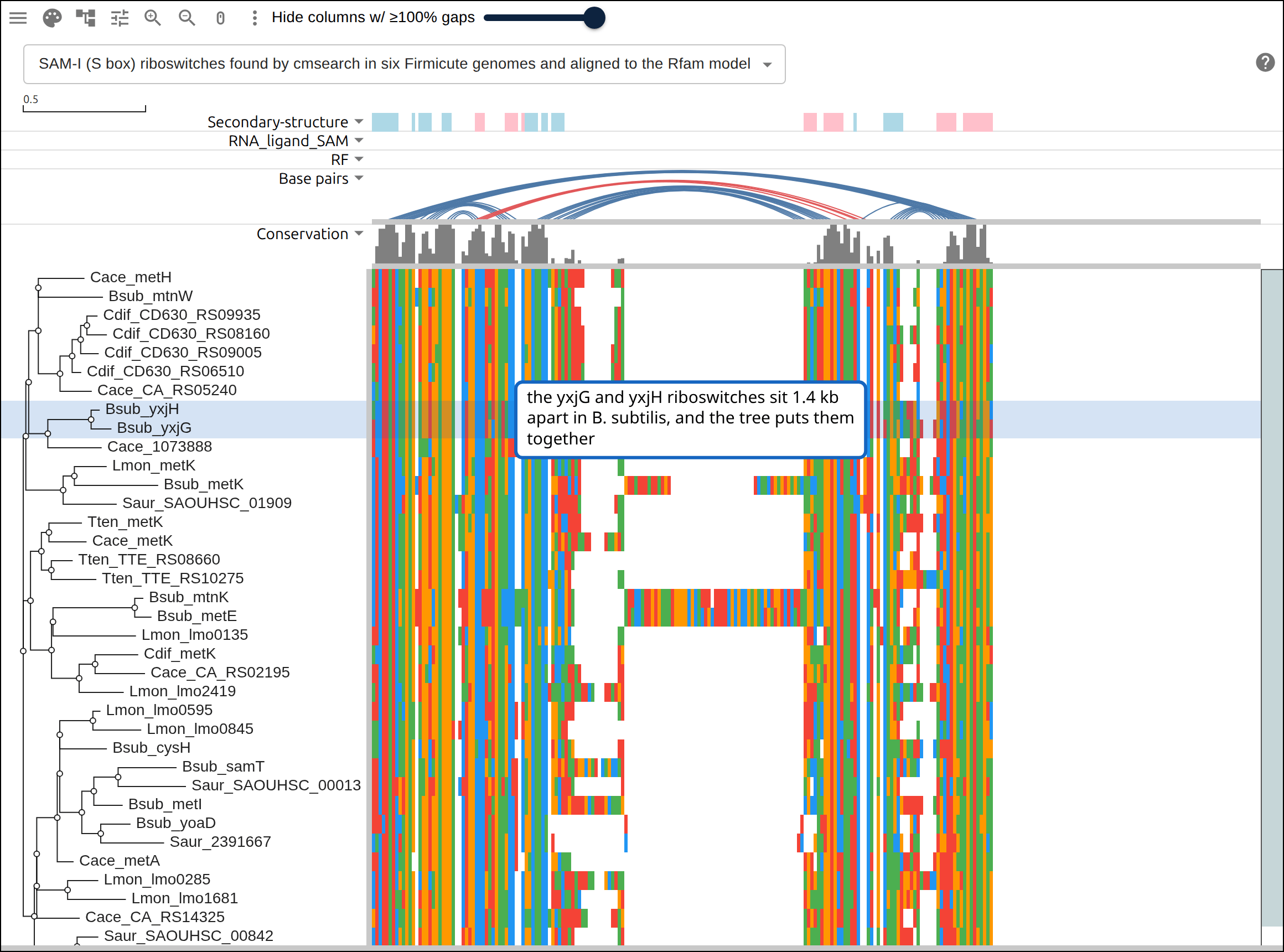

The tree with the whole alignment beside it at three pixels per column. Rows that lead the same gene in different species mostly sit apart, with the five rows named metK in three separate places. The tinted pair are the riboswitches of yxjG and yxjH, tandem paralogs whose leaders sit 1.4 kb apart on the B. subtilis chromosome, and four of the five C. difficile rows form another such clade.

The tree comes from 187 columns of a 108 nt RNA, so its deeper branching is poorly supported.

11. Check it against the raw data

The figures above show the consensus structure Rfam supplies. The build script’s last step re-derives the pairs from the alignment alone, counting a pair as complementary when it is Watson-Crick or GU:

paired columns: 1223/1322 = 92.5% can pair
pseudoknot only: 126/148 = 85.1% can pair
unpaired columns drawn at random: 8934/25415 = 35.2% can pair

The third line is the same statistic over random pairs of unpaired columns, which is how often two columns pair by chance.

The last check throws the structure away and searches, for each of the ten most variable columns, every other column for the one it pairs with best:

col  commonest base   best partner   SS_cons pairs them with
 58             31%     131 at  74%     131
133             32%      56 at  79%      56
131             34%      58 at  74%      58
 57             37%     132 at  91%     132
 56             40%     133 at  79%     133
132             40%      57 at  91%      57
  1             41%      11 at  73%     187
159             41%     172 at  86%     172
171             41%     146 at  70%     160
187             41%       5 at  81%       1
7 of 10 find the partner SS_cons names

Seven of the ten find the column the published structure pairs them with, out of 98 candidates each, and the three misses are columns 1, 171 and 187.

The same search over the five most variable columns SS_cons leaves unpaired, which have no partner to find:

col  commonest base   best partner   SS_cons pairs them with
 60             44%     131 at  62%       -
136             44%      55 at  85%       -
165             49%      30 at  66%       -
 36             57%       5 at  76%       -
178             57%       5 at  84%       -

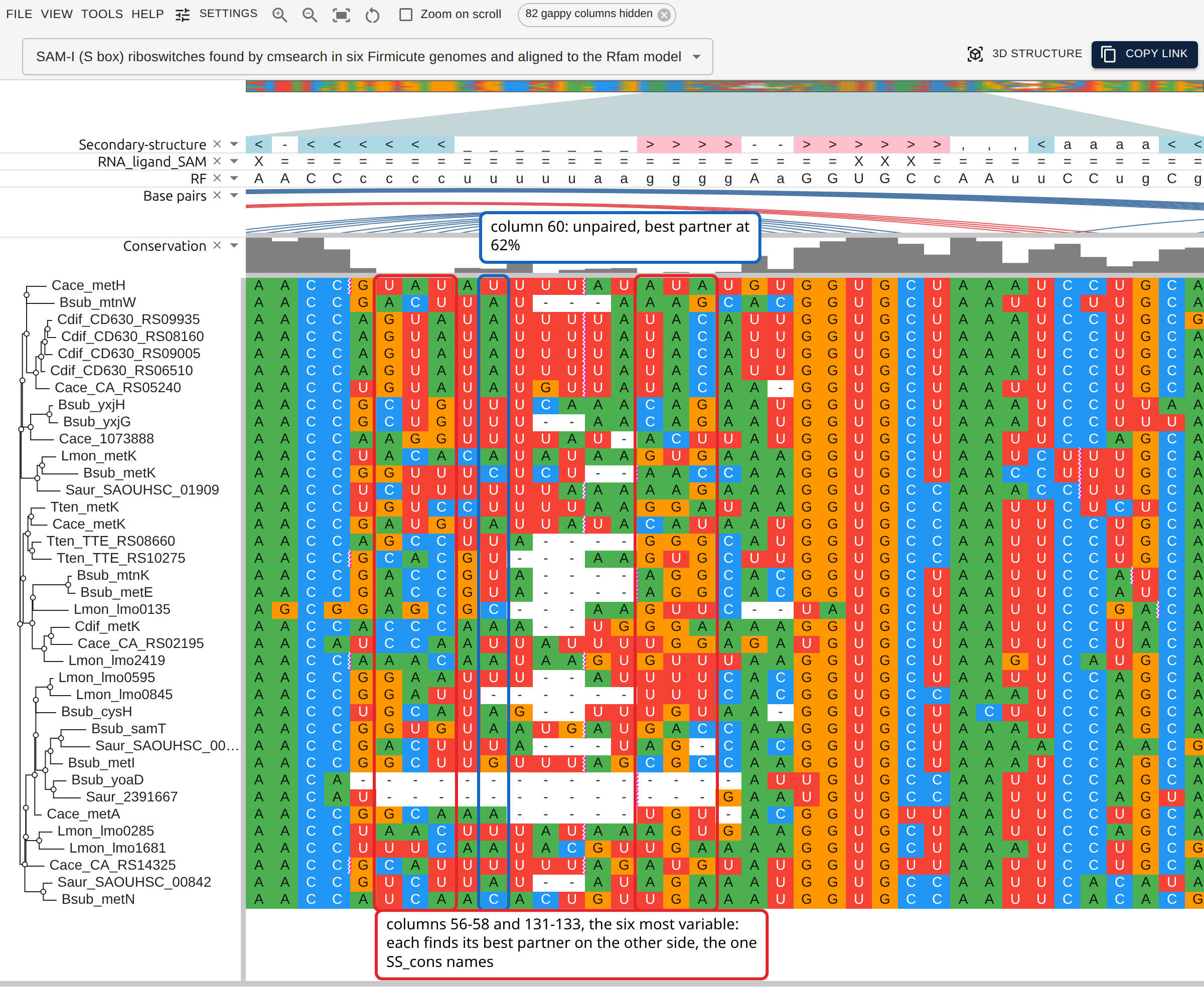

Columns 56-58 and 131-133 in red, with the 82 columns that are gaps in half the rows or more hidden, so both sides of the helix fit in one frame. Read the second box right to left: 56 pairs with 133, 57 with 132 and 58 with 131, the partners SS_cons names. Column 60 in blue, which SS_cons leaves unpaired, finds its best partner, column 131, at 62%.

Column 36, the control from the helix figure, tops out at 76%, and the best scores of the five come from nearly invariant columns such as column 5, which turns up twice.

Reproduce it end to end

build_rna_family.sh runs the commands above in order:

  1. It fetches the RF00162 covariance model and seed alignment from Rfam and the six genomes from NCBI, then searches the genomes at the family’s own curated threshold.
  2. It names each hit by the first gene downstream on the same strand, from the annotation of a 1500 nt window, and cuts the hit sequences out of the genomes.
  3. cmalign aligns the hits to the model’s consensus columns, and the script copies the seed’s consensus structure and SAM contacts onto those columns, which puts back the pseudoknot the model cannot carry.
  4. FastTree infers a tree, the script writes it and the alignment into one Stockholm file, and it re-derives the base pairs from the alignment alone as a check on the structure.

It needs the tools under Prerequisites.

curl -O https://raw.githubusercontent.com/GMOD/JBrowseMSA/main/docs/tutorials/scripts/build_rna_family.sh
bash build_rna_family.sh out/

The script writes out/sam-riboswitch.sto, the file the links on this page open, and prints every number quoted here.

See also

References

  • Grundy FJ, Henkin TM. The S box regulon: a new global transcription termination control system for methionine and cysteine biosynthesis genes in gram-positive bacteria. Molecular Microbiology 30:737-749.
  • Montange RK, Batey RT. Structure of the S-adenosylmethionine riboswitch regulatory mRNA element. Nature 441:1172-1175.
  • Nawrocki EP, Eddy SR. Infernal 1.1: 100-fold faster RNA homology searches. Bioinformatics 29:2933-2935.
  • Ontiveros-Palacios N, et al. Rfam 15: RNA families database in 2025. Nucleic Acids Research 53:D258-D267.
  • Price MN, Dehal PS, Arkin AP. FastTree 2: approximately maximum-likelihood trees for large alignments. PLoS ONE 5:e9490.
